Deep Sea Electronics DSE 6120 MK II - 35 V Auto Mains Failure Control Module


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

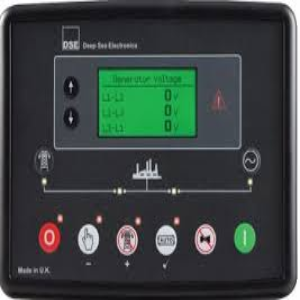

Deep Sea Electronics DSE 6120 MK II - 35 V Auto Mains Failure Control Module

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 9-10 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Deep Sea Electronics 35 V Auto Mains Failure Control Module is an Auto Mains (Utility) Failure Control Module designed to provide various operating and monitoring functions for single diesel and gas generator sets. The 35 V Auto Mains Failure Control Module can be used various sensors and engine types and makes sure that the display continues to work in extremely cold temperatures. The Auto Mains Failure Control Module has multiple installation options available. The Control Module also allows for easy generator control and management, as well as load current monitoring.

Product Specifications:

Brand: Deep Sea Electronics

Continuous Voltage Rating: 8 to 35 V, 5 V for up to 1 minute

Frequency range: 3.5 to 75 Hz

Maximum Operating Current: 510 mA at 12 V, 240 mA at 24 V

Maximum Panel Thickness: 8 mm

Model: DSE 7320 MK II

Overall Size: 245x184x51 mm

Panel Cut-out Size: 220x160 mm

Key Features:

3-phase generator sensing.

Heated display option.

Enhanced alarm functionality.

Product Specifications

GENERAL

Brand:
Deep Sea Electronics
Continuous Voltage Rating:
8 to 35 V
Frequency range:
3.5 to 75 Hz
Maximum Operating Current:
100 mA at 12 V, 105 mA at 24 V
Maximum Panel Thickness:
8 mm
Model:
DSE 6120 MK II
Overall Size:
216x158x43 mm
Panel Cut-out Size:
184x137 mm
Voltage range:
15 V to 415 V AC Ph to N, 26 V to 719 V AC Ph to Ph
Weight:
0.5 Kg
