Air Filter:
Multidirectional Fibrous Fleeces
Casing:
Galvanised Steel Plate
Dimension:
387x1111x1214 mm
Fan Air Flow Rate at 50 Hz:
Ultra High- 800 m3/h, High- 800 m3/h, Low- 700 m3/h
Fan External Static Pressure at 50 Hz:
Ultra High- 133 Pa, High- 92 Pa, Low- 72 Pa
Heat Exchanger Element:
Specially Processed Nonflammable Paper
Heat Exchanging System:
Air to Air Cross Flow Total Heat Exchange
Insulating Material:
Self Extinguishable Urethane Foam
Power Source:
1 phase, 220- 240 V, 50 Hz

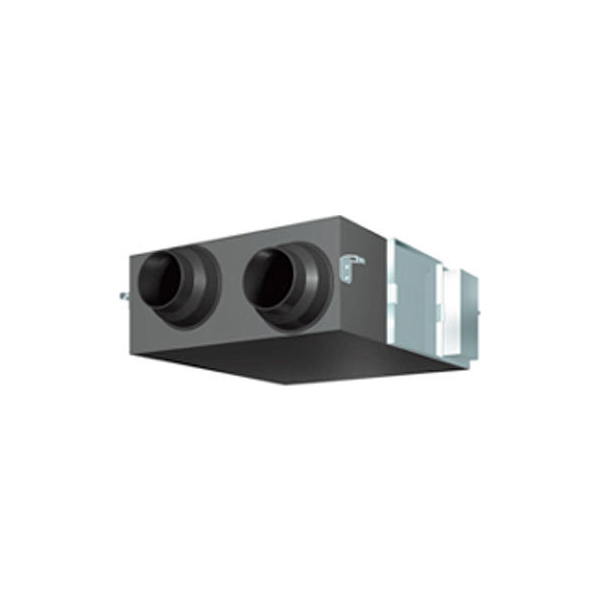

Product:
Heat Reclaim Ventilator
Temperature Exchange Efficiency at 50 Hz:
Ultra High- 72 W, High- 72 W, Low- 74 W
