Air Filter:
Multidirectional Fibrous Fleeces
Casing:
Galvanised Steel Plate
Dimension:
278x810x551 mm
Fan Air Flow Rate at 50 Hz:
Ultra High- 250 m3/h, High- 250 m3/h, Low- 155 m3/h
Fan External Static Pressure at 50 Hz:
Ultra High- 70 Pa, High- 54 Pa, Low- 24 Pa
Heat Exchanger Element:
Specially Processed Nonflammable Paper
Heat Exchanging System:
Air to Air Cross Flow Total Heat Exchange
Insulating Material:
Self Extinguishable Urethane Foam
Power Source:
1 phase, 220- 240 V, 50 Hz
Product:

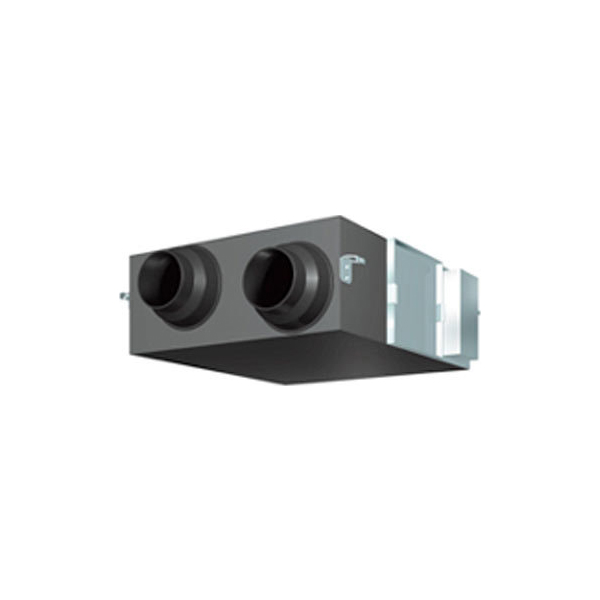

Heat Reclaim Ventilator
Temperature Exchange Efficiency at 50 Hz:
Ultra High- 75 W, High- 75 W, Low- 79 W
