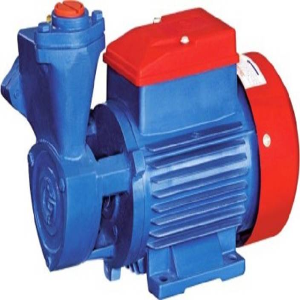

The Crompton – 3 Phase, 0.5 HP Centrifugal MonoBlock pump set comes with a brass impeller and a thermal overload protector and has a high-quality long-life mechanical seal. The 3 Phase, 0.5 HP Centrifugal MonoBlock pump set is self-priming up to 8m at mean sea level and aluminium extruded motor body. The MonoBlock Pump Set also has a unique motor design-capacitor start and run (PSC) type eliminating centrifugal switch. With a head of 6-30 m, the Pump Set works on 350-440 V and has a discharge rate of 44-10 LPM at a speed of 3000 RPM.
PRODUCT SPECIFICATIONS:
Brand: Crompton
Country of Origin: India
Discharge LPM: 44-10
Frequency: 50 Hz
Head: 6-30 meter
Impeller Material: Brass
Model: Mini Master II
Motor Body: Cast Iron
Phase: Three
Power: 0.5 HP
Power at Heavy Duty: 0.37 kW
Speed: 3000 RPM
Suc X Del: 25x25 mm
Voltage: 350-440 V
