Electric Motor:
TEFC, 2 Pole (3000 RPM Syn. Speed) Electric motor for single/three phase, 50 Hz AC Supply
Manufacturer Details:
Crompton, Crompton Greaves Consumer Electrical limited: Equinox Business park, Tower 3,LBS marg, Kurla, Mumbai- 400070, Ph no: 1800 419 0505
Model:

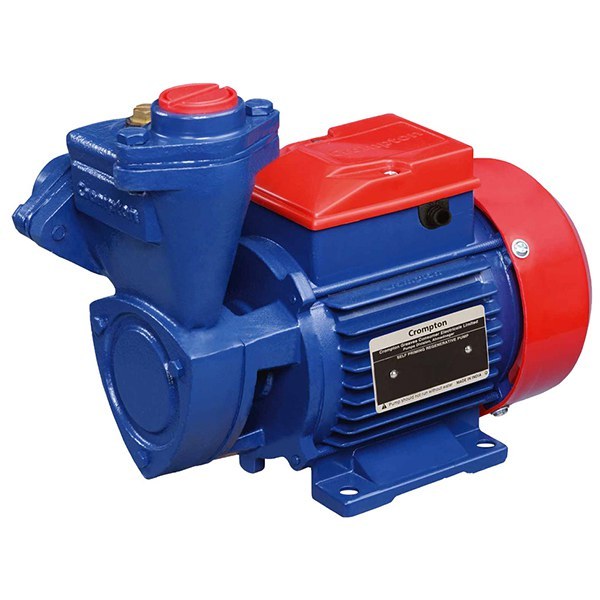

MINI MASTER I (3 PH)
OpeModel Temperature:
Suitable upto 65ç water
Packer Details:
Crompton, Crompton Greaves Consumer Electrical limited: Equinox Business park, Tower 3,LBS marg, Kurla, Mumbai- 400070, Ph no: 1800 419 0505
Pipe Size Suc X Del (mm):
25 X 25
Rotation:
Clockwise when viewed from motor end
Total Head vs Discharge at 220/415 volts, 1/3 PH, 50 Hz AC Supply:
6 M: 4000 LPH, 9 M: 3780 LPH, 12 M: 3560 LPH, 15 M: 3340 LPH, 18 M: 3120 LPH, 21 M: 2900 LPH, 24 M: 2690 LPH, 27 M: 2470 LPH, 30 M: 2250 LPH, 33 M: 2030 LPH, 36 M: 1810 LPH, 39 M: 1590 LPH, 42 M: 1370 LPH, 45 M: 1150 LPH, 48 M: 950 LPH
Voltage Band:
180 to 240 volts for single phase & 350 to 440 volts for three phase
