Electric Motor:
TEFC, 2 Pole (3000 RPM Syn. Speed) Electric motor for single phase, 50 Hz AC Supply at ambient temp. upto 50 Degree Centigrade
Manufacturer Details:
Crompton, Crompton Greaves Consumer Electrical limited: Equinox Business park, Tower 3,LBS marg, Kurla, Mumbai- 400070, Ph no: 1800 419 0505
Model:

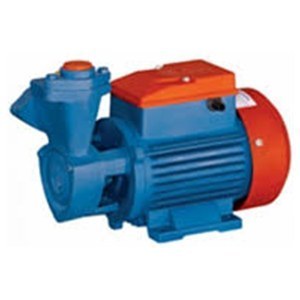

10 MINIMARVEL I-O25
Motor Protection Class:
IP 44
No. of Bathrooms Recommended:
3
Operating Temperature Range:
Suitable upto 65ç water
Packer Details:
Crompton, Crompton Greaves Consumer Electrical limited: Equinox Business park, Tower 3,LBS marg, Kurla, Mumbai- 400070, Ph no: 1800 419 0505
Pipe Size Suc X Del (mm):
25 X 25
Pressure Setting:
1.5-3.5 bar
Total Head vs Discharge at 220 volts, 1PH, 50 Hz AC Supply:
40 M: 600 LPH, 33 M: 1200 LPH, 24 M: 1800 LPH, 19 M: 2100 LPH, 11 M: 2700 LPH, 6 M: 3000 LPH
Voltage Band:
180 to 240 volts
