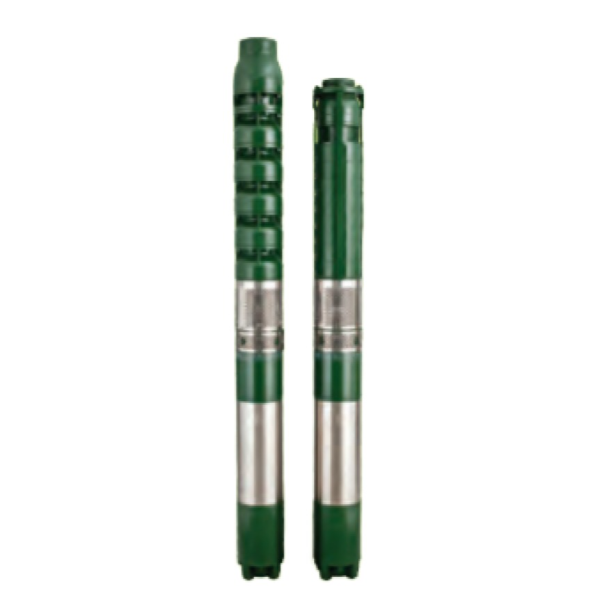

CRI WC8BM 48-10-03 BHIMA MF 100D SD 3P - Three Phase, V8 Bhima Series Submersible Pump


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
CRI

CRI WC8BM 48-10-03 BHIMA MF 100D SD 3P - Three Phase, V8 Bhima Series Submersible Pump

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

CRI - Three-phase, V8 Bhima Series Submersible pump is specifically designed for high voltage fluctuations. The Three-phase V8 Bhima Series Submersible pump comes with high-quality motors, which are used to increase the pump's life. Further, the Bhima Series Submersible pump has a high operating efficiency proving it to be best suited for sprinkle applications in agriculture and domestic fields. The Submersible Pump’s stator is wound with waterproof synthetic film insulated copper winding wires to lower rusting chances. The pump is also provided with low watt silicon steel laminations. The pumpset operates with the help of SS 410 hard chrome impellers. The 100 mm wide outlet size of the pumpset allows the higher flow of water during operation.

Product Specifications:

Power range: 7.5 KW - 55KW

Voltage range: 380 - 415V

Maximum total head: 397 meter

Maximum flow rate: 53.33 lps.

Diffusion Chamber: Cast iron.

Bhima Series

Maximum starts per hour: 20

Product Specifications

GENERAL

Borewell Size:
8 inch
Brand:
CRI
Country of Origin:
India
E Code:
17356
Model:
WC8BM 48-10-03 BHIMA MF 100D SD 3P
Outlet Size:
100
Phase:
Three Phase
Power:
7.5 kW, 10 HP
Rated Speed:
2900 RPM
Series:
Bhima
Stage:
3
Voltage:
415 V
