Buy Crabtree DCMJCTNF063 - 3 Pole+Neutral, 63A Xpro TPN 'C' Curve Series MCB Online

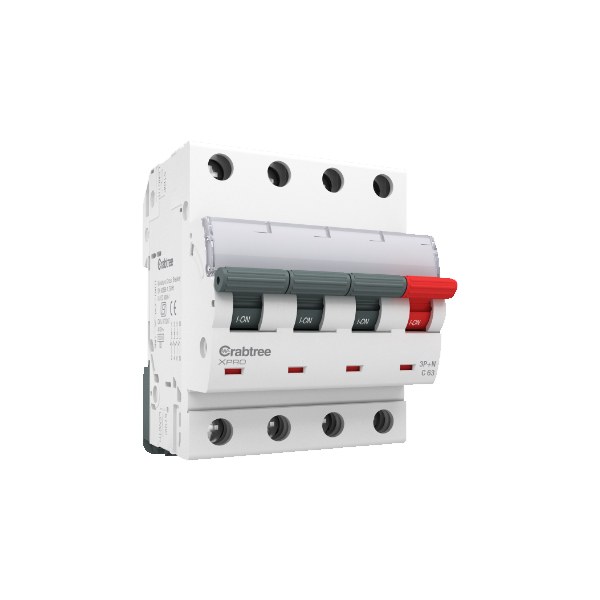

Crabtree DCMJCTNF063 - 3 Pole+Neutral, 63A Xpro TPN 'C' Curve Series MCB


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Crabtree DCMJCTNF063 - 3 Pole+Neutral, 63A Xpro TPN 'C' Curve Series MCB

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Inscription Window - Ensures circuit identification and hence reduces maintenance downtime
  • Safety Terminals - They guide the cable towards the cage terminal and avoid improper cable termination
  • Large Cable Terminals - The terminals are suitable for cables up to 35mm2 cross section area thus making it suitable for copper and aluminium cables
  • Bi Stable Clip - Every device is provided with a dual position DIN rail clamp. Hence, a device can be easily changed from a bank of devices connected by a busbar without disturbing your existing wiring
  • Positive Contact Indication - It clearly indicates contact position through Flag Indication (Red-ON, Green-OFF) thus enhancing safety
  • Air Circulation - When two poles are placed adjacent to each other, the channels between two poles form a tunnel resulting in very effective air circulation around individual poles
  • Field fittable Auxiliary Contacts
Product Specifications

GENERAL

Auxiliary contacts:
Yes
Brand:
Crabtree
Busbar Connections Bottom Side:
Pin/Fork Type
Busbar Connections Top Side:
Pin Type
Dimensions:
87.5x62x17.7 mm
IP Rating:
IP20
Manufacturer Details:
Havells India Ltd, Havells India Ltd., 904, Surya Kiran Building, K.G. Marg, New Delhi 110001. (INDIA)
Model:
DCMJCTNF063
Number of Poles:
3 Poles + Neutral
Packer Details:
Havells India Ltd, Havells India Ltd., 904, Surya Kiran Building, K.G. Marg, New Delhi 110001. (INDIA)
Product:
Xpro TPN 'C' Curve Series MCB
Rated Current:
63 A
Rated Frequency:
50 Hz
Rated Impulse Voltage:
4 kV
Rated Insulation Voltage:
690 V
Rated Voltage:
240/415 V
Series:
'C' Curve Series
Shunt Trip:
Yes
Tightening Torque:
2 Nm
