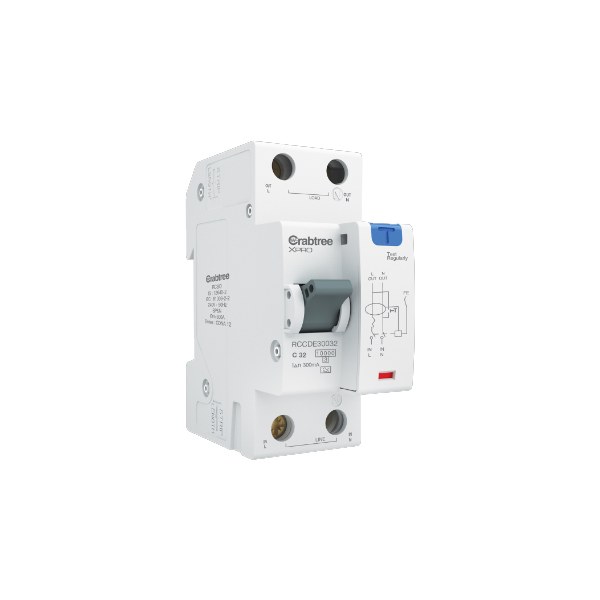

Crabtree DCBJACSN2300032 - 2M 32A, 300mA Xpro SPN 'A' Type RCBO


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Crabtree DCBJACSN2300032 - 2M 32A, 300mA Xpro SPN 'A' Type RCBO

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 1-2 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

RCBO is a single composite device which provides protection against over currents and earth leakage faults, it comes in the same width and profile as that of a standard MCB. It is designed for use in domestic, commercial and industrial distribution systems at the most downstream circuit for ensuring high degree of protection to the user for a particular circuit. In normal use, it is safe to use and poses no threat to user as well as to environment.

Features:

  • Positive contact indication: Red for ON , Green for OFF
  • Short circuit breaking capacity 10kA.
  • Large terminal capacity- RCBO's have 35 mm2 for cool running while in operation.
  • Protection in case of loss of supply neutral: Even in event of loss of supply neutral, Crabtree RCBO provides protection against faults. The Functional Earth (FE) white color wire connected to earth provides this protection.
  • Controlled response and immunity to nuisance tripping: The trip level and the response time of the Crabtree Voltage Dependent RCBO using electronic circuit is set to very precise values and thereby provide greater immunity to nuisance tripping that can be caused by mains borne noise, surge voltages, lighting surges, reactive loads, mains filters, etc.
  • Neutral to Earth faults: A connection that occurs between N and E on the load side of any RCBO will impact on its performance and cause the trip level to increase.
Product Specifications

GENERAL

Brand:
Crabtree
Dimensions:
87.5x68.4x35.4 mm
IS Specifications:
IP 20 as per IS 12640-2, IEC 61009
Manufacturer Details:
Havells India Ltd, Havells India Ltd., 904, Surya Kiran Building, K.G. Marg, New Delhi 110001. (INDIA)
Material Type:
Case and Cover- Moulded, flame retardant thermoplastic material
Model:
DCBJACSN2300032
Number of Modules:
2 Module
Number of Poles:
1 Pole + Switched Neutral
Packer Details:
Havells India Ltd, Havells India Ltd., 904, Surya Kiran Building, K.G. Marg, New Delhi 110001. (INDIA)
Product:
Xpro SPN 'A' Type RCBO
Rated Current:
32 A
Rated Frequency:
50 Hz
Rated Insulation Voltage:
690 V
Rated Residual Operating Current:
300 mA
Rated Voltage:
240 V
Tightening Torque:
2 Nm
