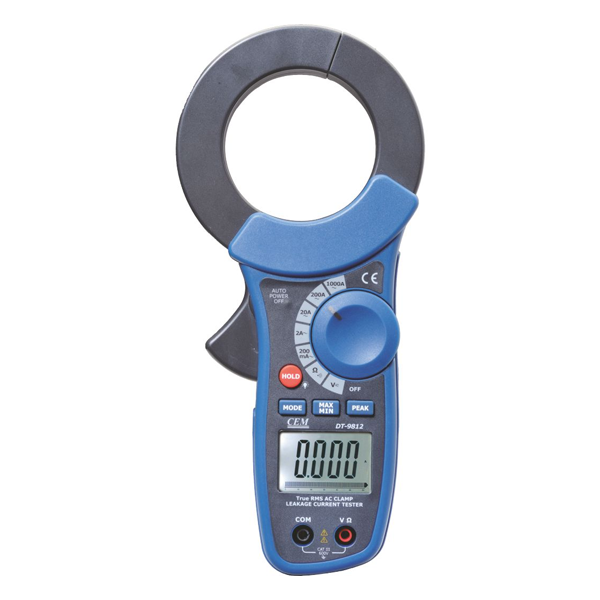

The CEM – 68 mm Digital Leakage Current Meter is a digital clamp meter that detects current leakage. The 68 mm Digital Leakage Current Meter can be operated on one 9V NEDA 1604 battery. The Digital Leakage Current Meter is provided with a data hold function that freezes a specific measurement as long as required. In addition, the Current Meter is provided with overload protection to keep the device safe from short circuit and current fluctuations. The 6000 counts LCD of the CEM – 68 mm Digital Leakage Current Meter shows a Bargraph for transient observation.
Product specifications:
AC Current Range: 0.1 mA to 1000A AC
Voltage Range: 0.1V to 600V
Brand: CEM
Dimensions: 250x113x45 mm
Jaw Opening Size: 68 mm
Model: DT-9812
Weight: 490 grams
Key features:
Accurate for leakage current measurement
100uA high resolution on 200mA range
Shield transformer jaws to minimises the effect of external stray magnetic field
Max/Min record function
Peak Value Measurement
600V overload protection for DC/ACV, ohm range measurement
Rotary switch for function selection
Data Hold Function
