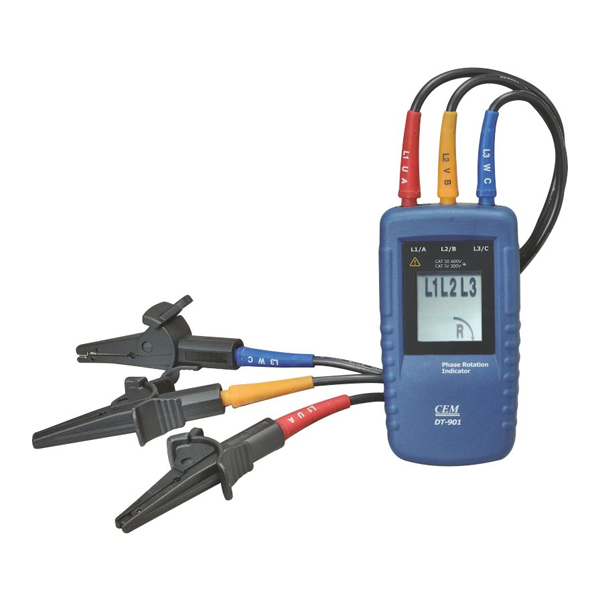

CEM - 40V to 690V AC Motor and Phase Rotation Indicator operates over a temperature range of 0 to 40 deg C. The 40V to 690V AC Motor and phase rotation indicator is a handheld instrument designed to detect the rotary field of three-phase systems. This device is made in India and has a test certificate also; it comes with compatible accessories. The 40V to 690V AC Motor and Phase Indicator is rated IP40 protection standards. The degree of pollution caused by this device is 2. The weight of this Motor and Phase Rotation Indicator is 130 grams. The dimensions of this product are 130x69x32mm. It can operate over a range of 40V to 690V, and the maximum operating voltage of the device is 690V. The phase rotation indicator works over a frequency range of 15 to 400Hz. The device is self-powered. The current pickup for this device is 1mA per phase.
Product Specifications:
Brand: CEM
Operating Voltage: 40 - 690 V
Frequency: 15 - 400Hz
Current Pickup: 1mA
Operating Temperature: 0 °C to + 40 degrees C
Weight: 130 grams
Model: DT 901
Dimensions: 130x69x32 mm
Key Features:
Provided with test leads and alligator clips
Self-powered device
Conforms to IEC61010/EN61010, CAT III 600V
LCD
Quick response
