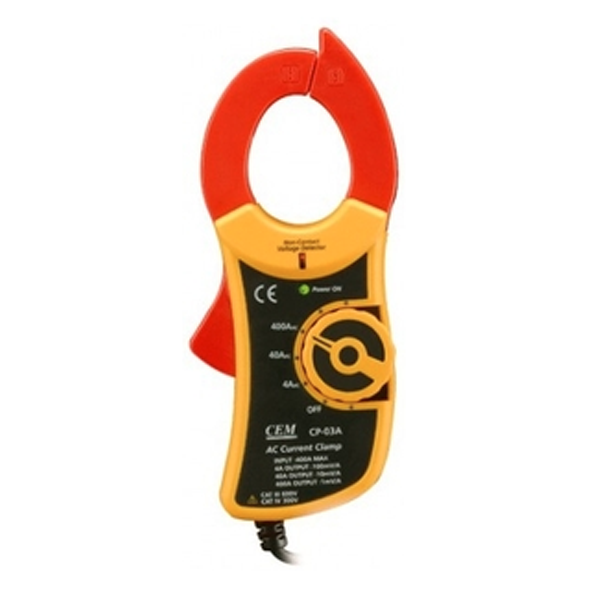

The CEM - 30 mm Clamp-on Current Adaptor convert measured current signals into a voltage signal suitable for multimeters, oscilloscopes, data recorders and other test instruments. The 30 mm Clamp-on Current Adaptor Clamp measure using one of two technologies. The "Hall Effect" is used for DC currents, whereas "Inductive" technology is utilised for AC currents. The Clamp-on Current Adaptor comprises a split ring made of ferrite or soft iron. A wire coil is twisted around one or both parts of a current transformer to form one winding. The Current Adaptor is standard equipped with two connectors for connection to a multimeter and a curled cable for measuring the instrument's distance.
Product Specification:
Brand: CEM
Dimensions: 150x58x35 mm
Jaw Opening Size: 30 mm
Measuring Range: 4A to 400A
Model: CP-03A
Output Voltage: 1 mV to 100 mV
Weight: 205 grams
Key Features:
Highly accurate
Affordable
Durable
High performance
