Braco CW Brass cable glands are as per BS 6121 Part 1 and suitable for single wire armoured plastic or rubber sheathed cables. The outer seal grips sheath. These glands provide mechanical cable retention, and electrical continuity via armour wire termination. The use of these glands is recommended in indoor as well as outdoor application because of suitability in most climatic conditions weather proof and water proof.

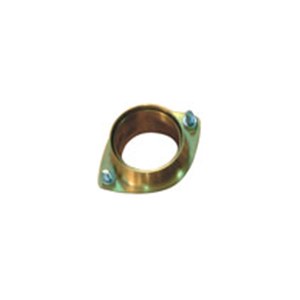

Braco Flange Type Cable Glands are made out of brass castings and are machined accurately to the required sizes. These glands are suitable for armoured cables and are called mechanical glands hence suitable for outdoor application.
The gland comprises of brass body(flange type oval shape) and plate clamped with galvanized mild steel studs and nuts for clamping the armour. Tapered cone and nut are provided for termination of cable.
The cone and body taper is designed for giving a firm grip to the armour of the cable.
Braco flange type cable glands are made out of brass castings and are machines accurately to the required sizes, These glands are suitable for armoured cables arnd are called mechanical glands hence suitable for outdoor application.
