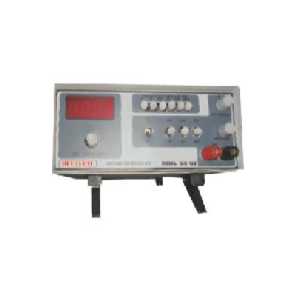

The Beetech - 1 MHz Digital Single Generator is an electronic device that generates repeating or non-repeating electronic signals. It is a product of Beetech, and it is a company that prioritises efficiency and safety. The 1 MHz Digital Single Generator produces a continuous high-purity signal that shows no modulation under any circumstances. The Digital Single Generator is short-circuit protected, and counter accuracy has a value of ±3 counts. Its duty cycle of square wave output is continuously adjustable from 0% to 70%. Its digital display provides the data correctly and vividly. It also allows you to output signals with various frequencies, amplitudes, and time durations. The Generator is lightweight, weighing only 3 kg, making portability easy.
Product Specifications:
Brand: Beetech
Dimensions: 75x205x240 mm
Frequency range: 1Hz to 1MHz
Model: CIS 12 D
Output Signal Impedance: 600 ohms
Output Waveform: Sin, Square waves, selectable
Product: Function Generator and Single Generator
Type: Digital Signal Generator
Weight: 3 kg
