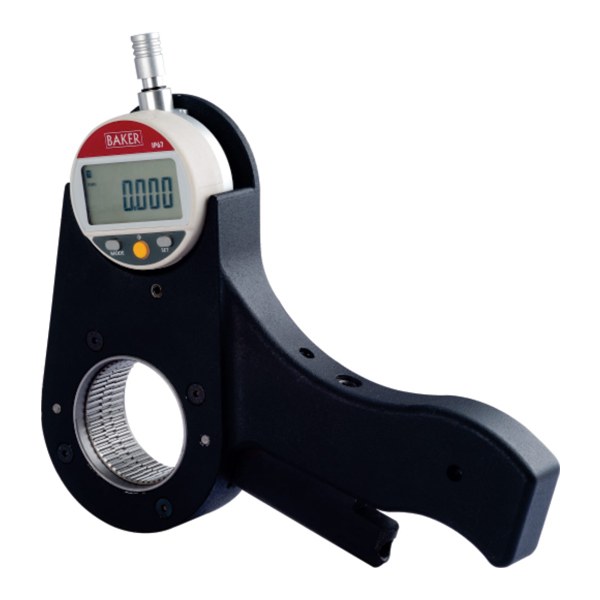

Baker - Variable Spline Indicator Ring Gauge with Setting Master Plug


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Baker - Variable Spline Indicator Ring Gauge with Setting Master Plug

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Variable spline indicator ring gauges are ideally suited to measuring component effective tool thickness. Spline indicators can also be supplied with two opposite sectors of teeth to measure actual tool thickness. We can supply ring gauges with analogue or digital indicators or even with transducer ports, making SPC type analysis possible on an external computer or other processing device.

Product Specifications

GENERAL

Brand:
Baker
IS Specifications:
ISO (International), DIN (Germany), ANSI / AGMA (American), JIS (Japanese)
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Max Diameter:
350 mm
Max Number of Teeth:
500
Max Tooth Length:
150 mm
Min Diameter:
3 mm
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Pitch:
Min: 0.1 module, Max: 25.4 module
Product:
Variable Spline Indicator Ring Gauge with Setting Master Plug
Typical Tolerances:
Profile: 0.005 mm, Total Spacing: 0.005 mm, Runout: 0.005 mm, Tooth Alignment: 0.0025 mm, Space Width: 0.005 mm
