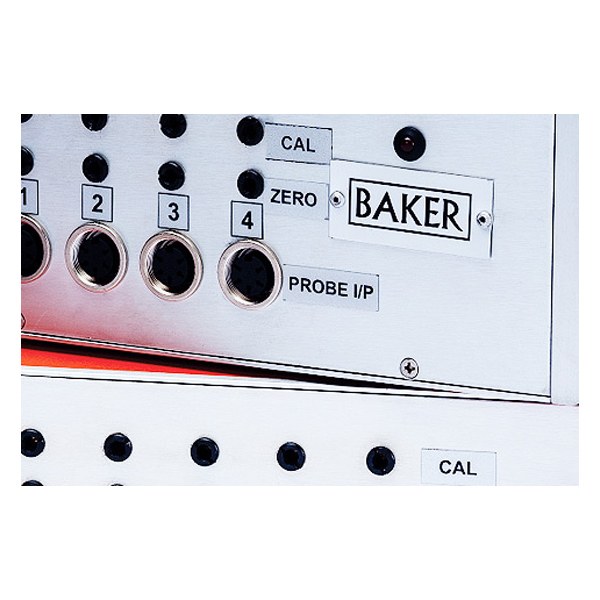

Baker - Standard Probe Module Electronic Gauge Interface


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Baker - Standard Probe Module Electronic Gauge Interface

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Eight measuring channels having pre-determined full scale DC output voltage, based on a pre-determined measuring range
  • Interfaced to eight Baker Inductive probes
  • Recessed 'Zero' control per channel: Travel 50 to 60 µm
  • Recessed calibration control per channel
  • Max. permissible error (MPE) per channel is less than or equal to +-1 % of the full scale measuring range
  • Reference temperature of calibration is 20 degreeC
  • Output drift over operating temperature range < 0.5 % / degreeC
  • Drift of sensitivity over operating temperature range < 0.5 % / degreeC
  • Output instability < 200 mv
  • Display stability time < 500 ms
  • Power consumed by module 20 VA (max)
  • Voltage supply to the read-out module: 230 V AC +-10 %, 50 Hz
  • Operating temperature range 0 degreeC to 45 degreeC. Humidity should not exceed 60 % Rh (non condensing)
  • All measuring channels are compatible only to the Baker Axial probes
Product Specifications

GENERAL

Brand:
Baker
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Product:
Standard Probe Module Electronic Gauge Interface
