Baker - Hole Location Thread Gauge


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Baker - Hole Location Thread Gauge

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

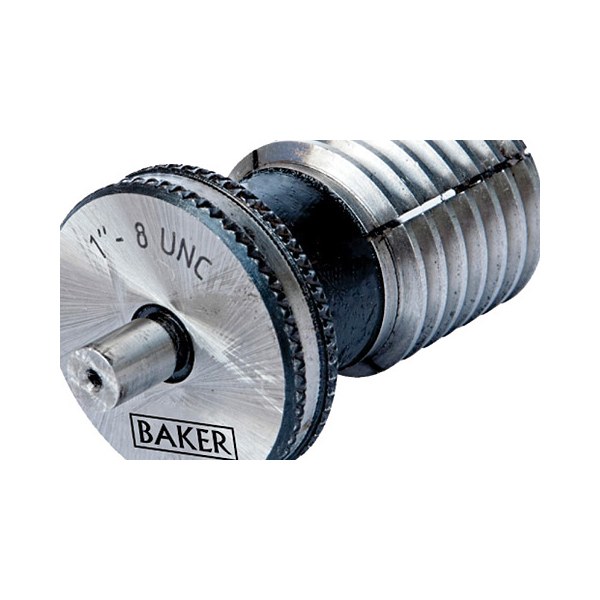

Hole location plugs are commonly used to measure the location of tapped holes. It is difficult to accurately measure the location of tapped holes using conventional methods; i.e. CMM's or indicating type instruments. Hole location plugs are deliberately manufactured with Pitch diameter over-size, then slitted, resulting in the threaded section collapsing while being screwed in the threaded hole. The hole location plug will screw in tightly, locating on the Pitch diameter of the tapped hole. A measurement can then be taken from the datum point to the cylindrical diameter on the hole location plug to determine location. For very small sizes, the plug is not slitted but the thread is manufactured with a gradual taper, which will lock up on the thread.

Features:

  • Positive grip on flanks regardless of hole size.
  • Shank diameter 6.35 mm is maintained within +- 0.0025 mm.
  • The shank is concentric to the threaded portion within 0.0025 mm.
Product Specifications

GENERAL

Brand:
Baker
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Product:
Hole Location Thread Gauge
