Buy Baker DS50 - 50mm Dial Snap Gauge Online

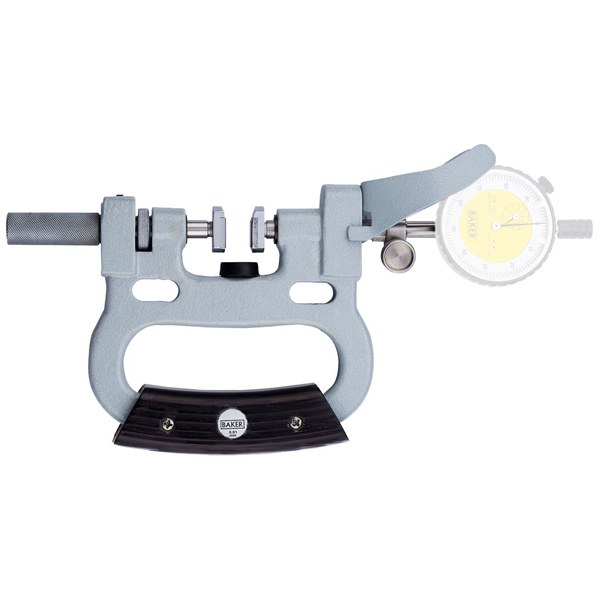

Baker DS50 - 50mm Dial Snap Gauge


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Features:

  • Designed for quick GO/NOT-GO gauging of diameters of cylindrical parts either inprocess or post process
  • Measuring spindle and anvil spindle are manufactured out of graded steel
  • Spindles are hardened and ground including screw threads
  • Carbide ground and lapped tip of measuring faces ensures maximum wear resistance
  • For quick entry, chamfer provided on front edges
  • Constant measuring force, which is a result of an in-built spring, eliminates user error
  • Once the gauge is set to zero with a master, we can measure the size directly
  • For easy reading, the indicator can be rotated and locked
  • Best suited for inspection of Continuous or Batch production items
  • Setting is done with the help of Gauge Blocks / Cylindrical Setting Masters
  • Any standard Dial Indicator with ø8 h6 mm holding shank can be fitted easily
  • Also used with Electronic probe and digital dial gauge
Product Specifications

GENERAL

Brand:
Baker
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Measuring Range:
25 - 50 mm
Model:
DS50
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
