Buy Baker DeMeet 220 - 455x725x615mm Video Model Multi Sensor 3D CNC Co Ordinate Measuring Machine Online

Baker DeMeet 220 - 455x725x615mm Video Model Multi Sensor 3D CNC Co Ordinate Measuring Machine


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Baker DeMeet 220 - 455x725x615mm Video Model Multi Sensor 3D CNC Co Ordinate Measuring Machine

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

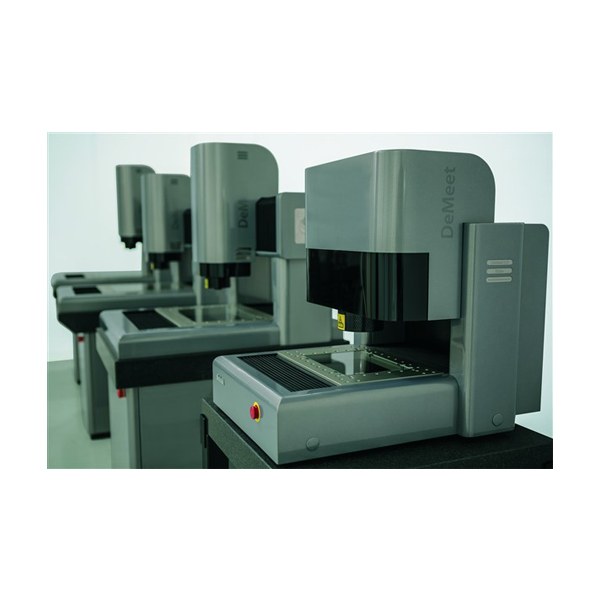

Baker has collaborated with Schut Geometrical Metrology to present 3D CNC Coordinate Measuring Machines manufactured in the Netherlands with Video Measurement (Optical) and Touch Probe Measurement facility depending upon the customer's requirements and are available in 5 measuring range models.

With an excellent price-performance ratio, the DeMeet measuring machines break the barrier for high precision quality control on the production floor as well as in measuring laboratories.

Applications of the Video and Multi-Sensor measuring are among others in the Precision Engineering, Medical, Plastics and Electronics industry.

Product Specifications

GENERAL

Backlight and Coaxial Light:
Adjustable
Brand:
Baker
Construction:
Cast iron, extremely tention relieved
Drive Equipment:
DC Servo Motors
Height:
615 mm
Leica design Telecentric Lenses:
2.0x
Length:
725 mm
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Max Load:
20 Kg
Max Velocity:
X - 200mm, Y - 200 mm, Z - 50 mm
Measuring Range:
X - 220 mm, Y - 150 mm, Z - 200 mm
Model:
DeMeet-220
Nikon Telecentric Lenses:
3.0x
Operation Type:
Motorized joystick control or Full CNC control
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Ringlight:
White LED: 3 Rings, 16 Segments and 48 Cell (adjustable)
Table Size:
X - 357 mm, Y - 260 mm
Video System:
DeMeet Camera (1/2 inch Sony-CCD)
Weight:
110 Kg
Width:
455 mm
Work Table:
Anodized aluminum, tention relived. Mounting hole pattern prepared for DF-system
