Description

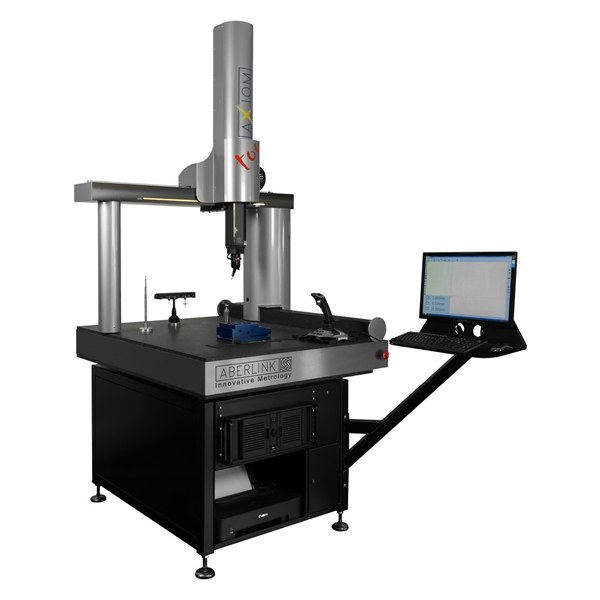

Fast, accurate and reliable, the Axiom too CMM comes in four different sizes with Y axis travel up to 1500mm. Available as either a manual machine or with full CNC control, the Axiom too can be used with touch trigger probe, continuous contact scanning probe or with Aberlink's revolutionary non-contact camera system.

The all aluminium bridge structure not only ensures that the Axiom too has low inertia and hence high acceleration to get the job done quickly, but also that the temperature of the machine rapidly follows the temperature of the room, ideal when the CMM is not housed in a controlled environment. Temperature compensation in the software reports results as if they had been measured at 20 deg C. The standard high-tech granite and aluminium table, originally developed for the optics industry, provides fantastic natural damping of high frequency vibration and the granite Y rail allows pre-loading of the bridge air bearings in both directions for superior accuracy.

Another unique feature of the Axiom too is that manual machines can be simply upgraded to CNC at any point in the future, which is great if you are not initially sure of your requirement or perhaps can't initially justify the additional cost of a CNC machine. Because of Aberlink's fully integrated manufacturing processes, the Axiom too offers unbelievable value, but above all it is simple to use. Aberlink 3D measurement software is way out on its own as the market leader for ease-of-use, perfect for both occasional user and also metrology professional alike.

Features:

  • Shortest learning curve of any equivalent system
  • Smallest overall footprint of any comparable size CMM
  • Choice of Y axis sizes ranging from 600mm to 1500mm
  • Suitable for the workshop environment
  • Protection from environmental vibrations as standard
  • Optimized friction free air bearings, all aluminium bridge and granite table
Product Specifications

GENERAL

Accessories:
Automatic Temperature Compensation, Touch Screen Joystick, CCD Camera System, Collimated Back Light Option
Air consumption:
50 l/min (1.8 cfm)
Axis Travel:
X - 640 mm, Y - 600, 900, 1200, 1500, Z - 500 mm
Brand:
Baker
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Max Acceleration Vector:
600 mm/sec²
Max Velocity Vector:
600 mm/sec
Operational Temperature Range:
0 - 45 deg C
Optimum Temperature Range:
18 - 22 deg C
Overall Size:
X - 1130 mm, Y - 900, 1200, 1500, 1800 mm, Z - 2320 mm
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Product:
Axiom Too Manual and CNC Co Ordinate Measuring Machine
Required Air Pressure:
4 bar (60 psi)
Scale Resolution:
0.5 ?m
Table Load Capacity:
300 kg
Table Type:
Honeycomb aluminium and granite or solid granite
Volumetric Accuracy:
TP20 (2.4 + 0.4L/100) µm, TP200 (2.3 + 0.4L/100) µm, SP25M (2.1 + 0.4L/100) µm
