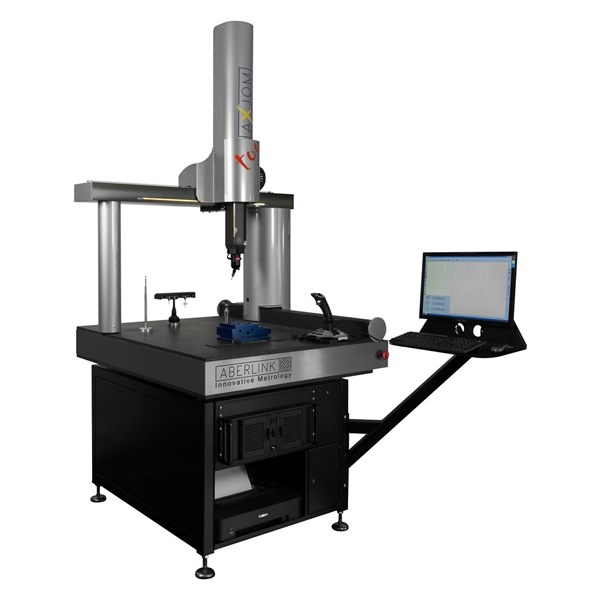

Baker - Axiom Too CNC High Specification Co Ordinate Measuring Machine


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Baker - Axiom Too CNC High Specification Co Ordinate Measuring Machine

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Axiom too HS also utilizes 0.1 ?m resolution scales on each axis. Incorporated with state-of-the-art error mapping techniques this means that the HS model is the most accurate machine ever produced by Aberlink ideal when measuring tight tolerances.

Features:

  • Shortest learning curve of any equivalent system
  • Choice of Y axis sizes ranging from 600mm to 1500mm
  • Fitted with 0.0001mm linear encoders for superior accuracy
  • Angled bearing zero backlash drive system for quicker acceleration and faster travel
  • Suitable for the workshop environment
  • Optimized friction free air bearings, all aluminium bridge and granite table
Product Specifications

GENERAL

Accessories:
Automatic Temperature Compensation, Touch Screen Joystick, CCD Camera System, Collimated Back Light Option
Air consumption:
50 l/min (1.8 cfm)
Axis Travel:
X - 640 mm, Y - 600, 900, 1200, 1500, 1800 mm, Z - 500 mm
Brand:
Baker
Manufacturer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Max Acceleration Vector:
1200 mm/sec²
Max Velocity Vector:
866 mm/sec
Operational Temperature Range:
0 - 45 deg C
Optimum Temperature Range:
18 - 22 deg C
Overall Size:
X - 1130 mm, Y - 900, 1200, 1500, 1800 mm, Z - 2320 mm
Packer Details:
Baker Gauges Pvt Ltd,33-1-2, Nagar Road, Pune-411014, India, Phone : 91-20-66093800
Product:
Axiom Too CNC High Specification Co Ordinate Measuring Machine
Scale Resolution:
0.1 ?m
Table Load Capacity:
300 kg
Table Type:
Honeycomb aluminium and granite or solid granite
Volumetric Accuracy:
TP20 (2.1 + 0.4L/100) µm, TP200 (2.0 + 0.4L/100) µm, SP25M (1.8 + 0.4L/100) µm
