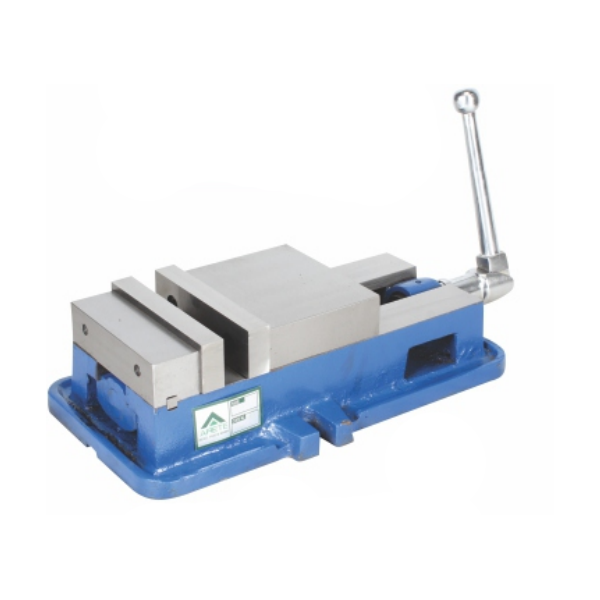

Arete SG 1135P - 125 mm Plain Model Tilt Lock Machine Vice


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Arete SG 1135P - 125 mm Plain Model Tilt Lock Machine Vice

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Tilt Lock Machine Vice design is beamlike with two vertical and horizontal rails connected to the base.
  • You can hold piece parts in the most immobile state possible.
  • Flame Hardened Bed.
  • All parts interchangeable and available as spares.
  • That the movable jaw does not lift off the bed.
  • That the body is rigid, and that a minimum amount of bending stresses are created in the clamping area.
  • That deflection of the stationary jaw is minimized.
  • Totally enclosed toughened Screw.
  • Accuracy in Parallelism and squareness within 0.02 mm.
  • Unbreakable ductile iron cast body. Die Steel (EN-31) hardened and ground jaws.
  • In addition to the rigid design characteristics, a large heavy nut is drawn up againest the machined ways on the inside vice as the movable jaw is drawn down. This creates a heavy mass of material under compression and extremely resistant to bending stresses.
  • 4 Jaws Plate positions allowing extra capacity with the jaw plates in the outside position.
Product Specifications

GENERAL

Brand:
Arete
Jaw Depth:
40 mm
Jaw Width:
125 mm
Model:
SG 1135P
Overall Height:
123 mm
Overall length:
410 mm
Overall Width:
221 mm
Position 1 Between Jaws:
125 mm
Position 2 Between Jaws:
185 mm
Position 3 Between Jaws:
270 mm
Position 4 Between Jaws:
330 mm
Size:
125 mm
Tenon Slot Size:
20 mm
Weight:
25 Kg
