Buy Arete SG 1101 A - 150 mm Universal Machine Vice Online

Arete SG 1101 A - 150 mm Universal Machine Vice


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Arete SG 1101 A - 150 mm Universal Machine Vice

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

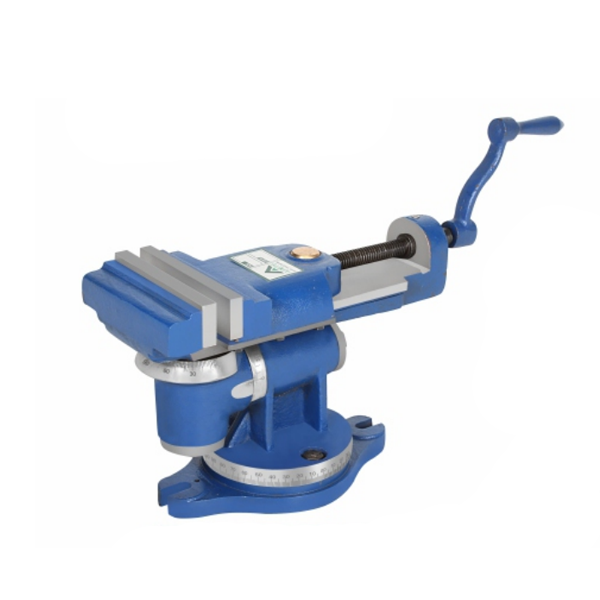

  • The most versatile of all machine vices with all degrees of freedom, the Universal Vice allows the work piece to be set at any desired angle.
  • The specific advantage of this Vice is its ability to be set perpendicular to the base, thereby allowing right angle machining on the same machine setting.
  • Allows for the job to be set at low heights, particularly suitable for the most complicated grinding applications.
  • Fully graduated 360 Degree swivel base allows complete rotation along the vertical axis. The third angular side with a moving axis allows for any setting in the 3D plane.
  • Sliding jaw runs on accurately ground surfaces fitted with hardened steel keep strips ensuring perfect alignment and rigidity.
  • All swivelling movements have positive locking.
  • Hold Down slots allow for secure clamping of the vice on the work table.
Product Specifications

GENERAL

Body Type:
Iron Body
Brand:
Arete
Jaw Depth:
40 mm
Jaw Width:
150 mm
Model:
SG 1101 A
Opening Jaw:
115 mm
Overall Height:
225 mm
Overall length:
405 mm
Overall Width:
155 mm
Size:
150 mm
Tenon Slot Size:
16 mm
Weight:
25 Kg
