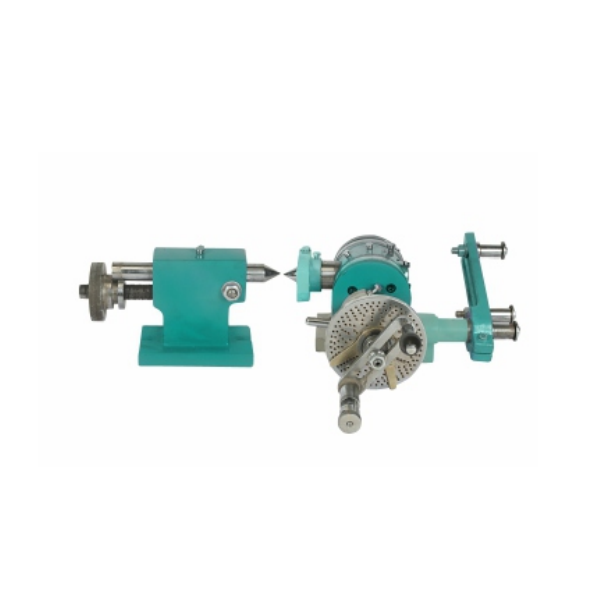

Arete 1168 - 127 mm Universal Dividing Head

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Dividing head can divide in any angle by the direct, in-direct, or differend methods.
  • The body is made of close grained cast iron precisely machined to close accuracies.
  • The swivel clamping pad is made from aluminium which helps eliminate any damage to the measuring device.
  • Powder Coated Finish.
Product Specifications

GENERAL

Base Length:
180 mm
Base Width:
115 mm
Brand:
Arete
Center Height:
127 mm
Gear Set D.P:
14
Model:
1168
Number of Indexing:
Side A 11, 16, 19, 25, 37, 41, 49, Side B 13, 17, 18, 27, 33, 43, 51
Overall Height Vertical Position:
175 mm
Set of Gears:
24, 24, 28, 32, 36, 40, 44, 48, 56, 64, 72, 86, 100
Spindle Bore:
20 mm
Spindle Taper Degree:
1.5
Weight:
45 Kg
Worm Gear Ratio:
1.40
