Buy Arete 1115 E - 450 mm Horizontal and Vertical Universal Rotary Milling Table Online

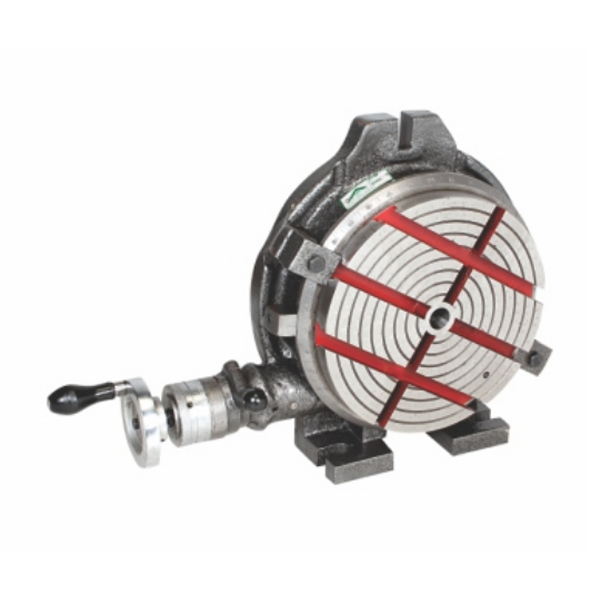

Arete 1115 E - 450 mm Horizontal and Vertical Universal Rotary Milling Table


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Arete 1115 E - 450 mm Horizontal and Vertical Universal Rotary Milling Table

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • High accuracy, easy reading of all dias clear and functional of all operating elements, sturdy yet good looking practical design. These are widely used for circular cutting, angle cutting, boring and spot facing with a milling machine.
  • Works as an index center in the vertical position, as well as conventional Rotary Table, graduated 360 Degree.
  • Provision for fine adjustments when settings work piece.
  • Efficient lock provided.
  • Worm drive disengagement is quick and precise. An eccentric sleeve with thrust Bearing races encases the worm shaft.
  • End play in worm shaft is adjustable.
Product Specifications

GENERAL

Base to Centre:
315
Brand:
Arete
Centre Bush Bore:
4
Dia of Table:
450 mm
Model:
1115 E
Overall Height Horizontal:
160 mm
Overall Height Vertical:
620 mm
Size:
450 mm
Table T Slot Size:
20 mm
Weight:
175 Kg
Wheel Calibration:
1 Minute
Worm and Gear Ratio:
1:120
