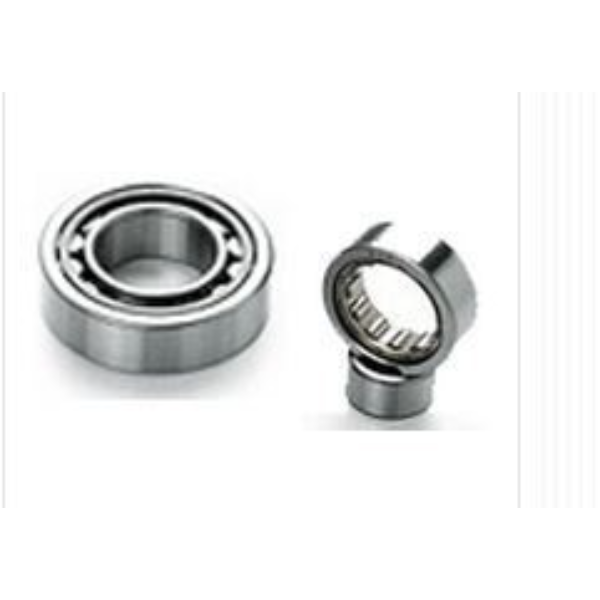

ARB Cylindrical Roller Bearings have linear contact with the moving planes. Therefore, they are suitable for high speed and high load-carrying capacity. These types of Cylindrical Roller Bearings are useful for single-row bearings, and they are useful for double-row bearings. Both the inner and outer rings of Roller Bearings are detachable and can take axial loads. In addition, Cylindrical Roller Bearings with double-row have high radial rigidity.
Product Specifications:
Brand Name: ARB
Country of Origin: India
Designation Series: NJ
Model Number: NJ 206
Product Type: Roller Bearing
Product Name: Cylindrical Roller Bearing
Material: Stainless Steel
Inside Diameter (mm): 30 mm
Outside Diameter (mm): 62 mm
Width (mm): 16 mm
Shoulder diameter of the inner ring (d1) (mm): 41.2 mm
Shoulder diameter of the inner ring (D1) (mm): 52.08 mm
Chamfer dimension of loose flange ring (F) (mm): 37.5 mm
Key Features:
Support radial loads
Support high-speed operations
Collars can resist axial loads
