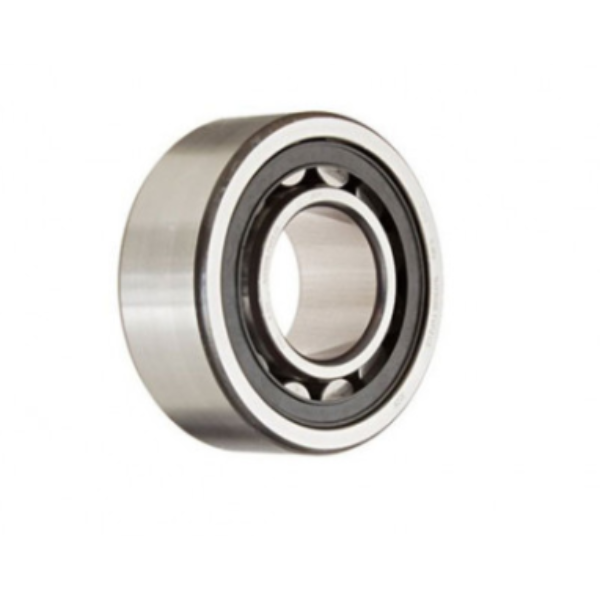

ARB Cylindrical Roller Bearings consist of cylinders in place of balls compared to the ball bearings. The Cylindrical Roller Bearings can support heavy loads and high-speed operations. These Cylindrical Roller Bearings have collars on either the other or inner rings that help to support the loads like axial loads, radial loads, etc. The cylinder sets make a separation between the moving planes that reduce friction. The bearings have collars on both sides. The Cylindrical Roller Bearings can be mounted or dismounted when required.
Product Specifications:
Brand Name: ARB
Country of Origin: India
Designation Series: N
Model Number: N 308
Product Type: Roller Bearing
Product Name: Cylindrical Roller Bearing
Material: Stainless Steel
Inside Diameter (mm): 40 mm
Outside Diameter (mm): 90 mm
Width (mm): 23 mm
Shoulder diameter of the inner ring (d1) (mm): 57.5 mm
Raceway diameter of the outer ring (E) (mm): 80 mm
Key Features:
Support radial loads
Support high-speed operations
Collars can resist axial loads
