Apex SG 703P - 200 mm Plain Model S G Iron Body Vice


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Apex SG 703P - 200 mm Plain Model S G Iron Body Vice

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

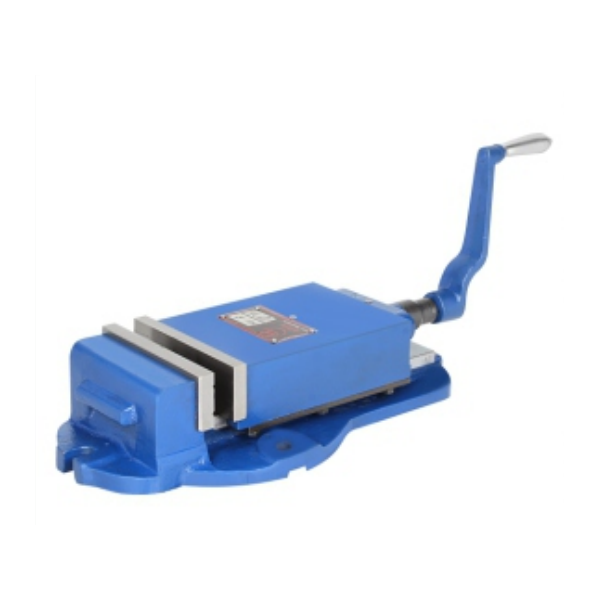

The Apex - 200 mm Plain Model SG Iron Body Vice is a mechanical tool that consists of two parallel jaws, one jaw fixed and the other movable, threaded in and out by a screw and lever. The SG 703P - 200 mm Plain Model SG Iron Body Vice secures the object accurately. The 200 mm Plain Model SG Iron Body Vice has a ductile iron body with a hammer tone metallic blue finish. With a jaw opening capacity of 200 mm, the Plain Model SG Iron Body Vice weighs 57 kg with a height of 115 mm and a width of 190 mm. The Plain Model SG Iron Body Vice contains slide tenon slots of size 20 mm with an interchangeable ACME thread screw and accurately hardened and tempered steel jaw plates. In addition, the enclosed sliding jaw of SG Iron Body Vice contains a hot-stamped manganese bronze nut. Therefore, the Apex SG 703P - 200 mm Plain Model SG Iron Body Vice is suitable for industrial and commercial applications.

Product Specifications:

  • Brand: Apex
  • Country of Origin: India
  • Type: Plane model vice
  • Model No.: SG 703P
  • Jaw Width: 200 mm
  • Jaw Depth: 60 mm
  • Jaw opening capacity: 200 mm
  • Dimensions: 570×190×115 mm
  • Weight: 57 kg
  • Tenon slot size: 20 mm
  • Material: Cast Iron
  • Colour: Blue

Key Features:

  • Hammer-toned metallic blue finish with the ductile iron body.
  • The enclosed design prevents any entry of foreign material.
  • High tensile stress relieved quality casting steel jaw plates.
  • Safe to use and protects the screws and nuts with its ergonomic design.
Product Specifications

GENERAL

Brand:
Apex
Manufacturer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Model:
SG 703P
Packer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Product:
Plain Model S G Iron Body Vice
Size:
200 mm
