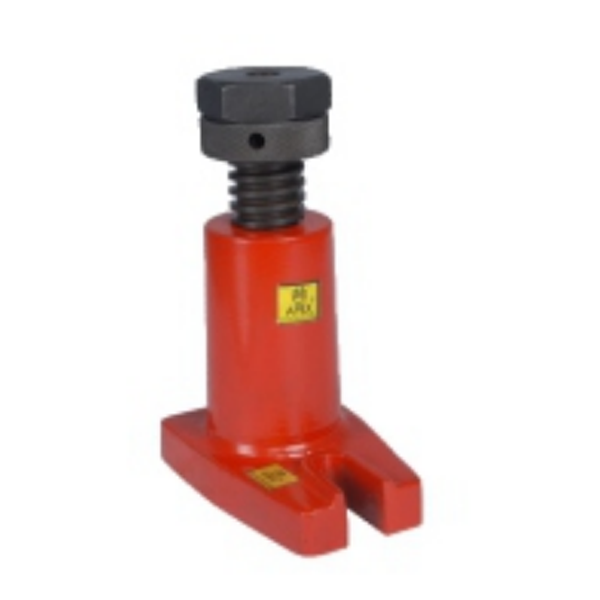

The Apex - 100 to 140 mm Screw Jack with Single Side Flange is the ideal screw jack with a centring hole of diameter 12 mm. The 100 to 140 mm Screw Jack with Single Side Flange has another great quality of its bottom flange that bolts to the T-Slot for stability. The spindle of the Screw Jack with Single Side Flange is made from top-grade carbon steel for prolonged usage and enhanced durability, along with a trapezoidal thread. The housing of the Screw Jack comprises high tensile SG iron. In addition to its vast qualities and advantages, the pads of Code P911-8/14 and 9/26 can work for locating U-Clamps safely.
Product Specifications:
Manufactured by: Apex
Item Type: Screw Jack with Single Side Flange
Model Code: SF911-1
Range (H1-H2): 100-140 mm
Barrel Diameter: 50 mm
Slot Width: 18 mm
Base: 75 x 110 mm
Static Load + kN: 60
Wt. Kg: 1.870
Key Features:
Centring hole with 12 mm diameter
The bottom flange can attach to T-Slot providing enhanced stability
High-quality carbon steel body for resistance and reliability over a long time
