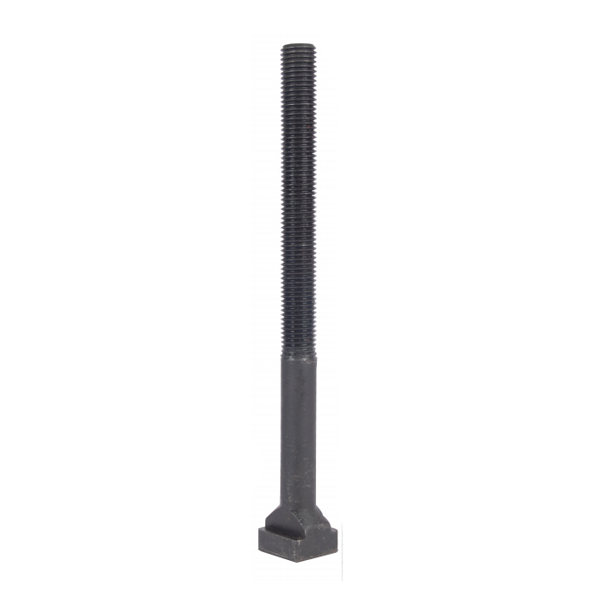

The Apex 250 mm T Bolt 929 49 are clamping elements for T-slots. These are suitable for T-slotted heads, which have a cross piece for a head and conform to the I.S. code 2014-1977. These 250 mm T bolts have a head of square or rectangular shape made to fit the T shaped slots. T bolts easily fasten the lift guide rails. The T-bolts can flexibly be placed in required positions with anchor channels and are convenient for tensioning and clamping mechanisms. T bolts are suitable for heavy trucks, off-road devices, industrial machinery as it provides a high diameter.
Product Specifications:
Brand name: Apex
Finish Type: Burnished
Length: 250 mm
Model Number: 929-49
Product Name: T Bolt
T Size: 22 mm
Thread: M20
R=80/90 kg/mm²
Class 8.8 (8G)
K: 14
Size (AxB): 35x35
Key Features:
Highly resistant steel
Resistant to corrosion
High Durability
