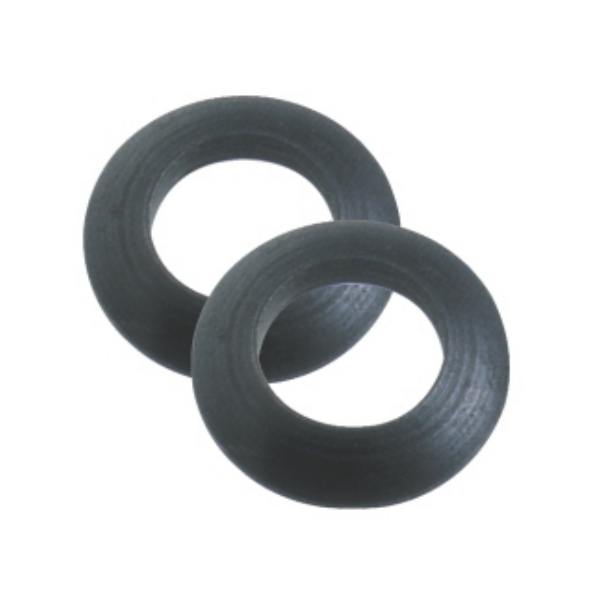

The Apex - M12 Spherical Washer with Conical Seat is utilised in a screw connection to compensate for non-parallel surfaces. It accommodates as a ball and socket in a clamping system, redressing the marginal displacement of clamped elements. This Washer with Conical Seat minimises bolt fatigue and evenly distributes bolt tension to perfection. It comprises hardened and tempered steel. The M12 Spherical Washer with Conical Seat can endure rough utilisation and high impact pressure and shock without affecting its structure. It is highly resistant to corrosion and damage. The M12 Spherical Washer with Conical Seat decreases noise, preserves energy, and increases productivity.
Product Specifications:
Brand: Apex
Country of Origin: India
Model Number: 926 3
Material: Tempered steel R= 80/90 kg/mm² class 8.8 (8G)
Finish: Burnished
IS: 4297-1996
Bore Diameter: 13 mm
Overall Size: 24 x 5 mm (D x H)
Size: M12
Quantity: Pack of 8
Key Features:
Easy to use
Reduces friction loss
It is usable extreme temperatures
Corrects misalignment clamping parts
