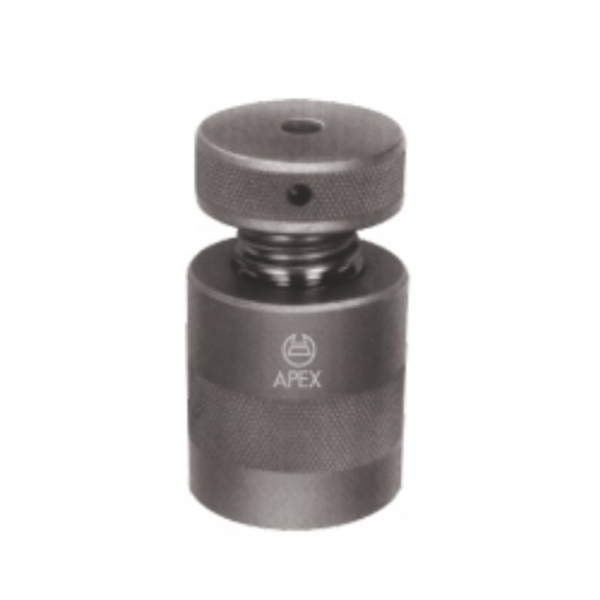

The Apex 911 1 - 40 to 50 mm Screw Jack with Steel Body Having Flat Support is used for heavy-duty work such as lifting vehicles, raising and lowering the horizontal stabilizers of aircraft, and maintaining the foundation of the houses by acting as adjustable supporters for heavy loads. The 40 to 50 mm Screw Jack with Steel Body Having Flat Support comprises heat-treated and blackened carbon steel with a trapezoidal thread spindle and a centring hole diameter of 12 mm for incorporating the pads. The Screw Jack with Steel Body Having Flat Support has a stop-end body and a self-locking system. With an overall weight of 0.230 kg and a base and cap diameter of 32 mm, the Screw Jack contains a heavy-duty vertical screw with a load table mounted on its top. The Screw Jack operates by turning the lead screw, and the rotating collar of the Screw Jack has holes in which the handle and the metal bar fit to support large load forces. The Apex 911 1 - 40 to 50 mm Screw Jack with Steel Body Having Flat Support has a maximum static load of 12 Kn and is perfect for technical and industrial purposes.
Product Specifications:
Brand: Apex
Country of origin: India
Type: Screw Jack
Model No.: 911-1
Range (H1 and H2): 40-50 mm
Base Diameter: 32 mm
Cap Diameter: 32 mm
Max Static Load: 12 Kn
Weight: 0.230 kg
Material: Carbon Steel
Colour: Black
Finish: Black Penetrated
Key Features:
It comes with a self-locking system.
Reliable and safe to use with a carbon steel body.
An attractive black penetrated finish.
It provides high corrosion resistance.
