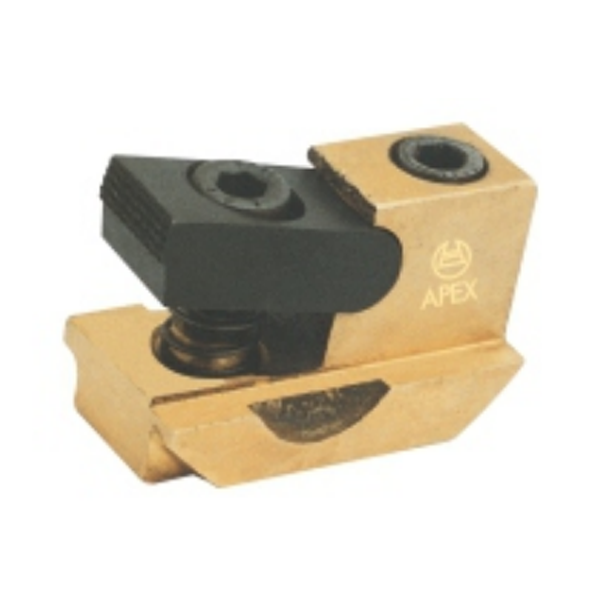

The Apex - 14 mm Slot Clamp is a great instrument that is highly useful to hold the thin plates up to 9 mm thickness and Clamp positively due to its very low height. The entire body goes in the T Slot, and only the clamping jaw remains above the bed level. Another interesting feature of the 14 mm Slot Clamp is that it enables a complete surface machined in one setting. The main body Slot Clamp comprises premium brass to save the machine bed from rusting under a corrosive working environment. The clamping jaws use heat-treated alloy steel for strength and durability. The product is ideal for jobs that require low to medium clamping force. On the other hand, there are numerous applications of this first-class product in the milling and planing operations and other works where high clamping force is required.
Product Specifications:
Manufactured by: Apex
Type: Slot Clamp
Model Code: 904-14
T-Slot: 14 mm
Length: 43 mm
Breadth: 23 mm
Height: 28 mm
Allen Key: 5 mm
Approx. Pressure kN; 7 and 3.50
Weight App. Kg: 0.125
Finish: Black Oxidised.
Key Features:
Effective and strong clamping force
Conveniently allows machining the entire surface in a single setting
Top grade brass body and hardened steel jaws for toughness and resilience
Wide range of applications
