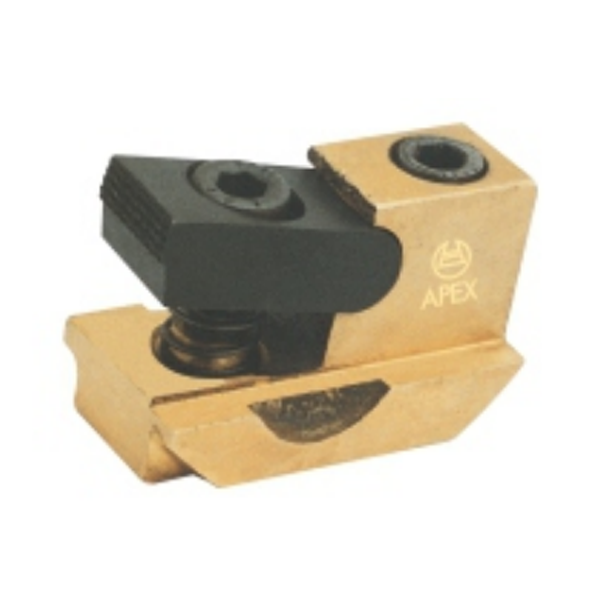

The Apex - 12 mm Slot Clamp holds the thin plates up to 9 mm thick and can clamp positively because of its low height. The 12 mm Slot Clamp consists of a main body made from deep forged brass that helps prevent rust and clamping jaws made of heat-treated alloy steel for providing strength and toughness. The body of the 12 mm Slot Clamp goes in the 12 mm T slot, and the clamping jaw remains above the bed level enabling the machining of complete surface in one setting. The major part of the clamp body of the Slot Clamp is occupied in the T-slot to achieve a low height advantage, and the jaws apply a clamping force on the edge of the thin plate by exerting forward and downward forces. With an approx weight of 0.100 kg, the Apex - 12mm Slot Clamp is ideal for milling, planning, and mechanical work where high clamping force is required and can also operate in a corrosive atmosphere.
Product Specifications:
Brand: Apex
Country of origin: India
Type: Slot Clamp
Model No.: 904-12
T-slot: 12 mm
Length: 40 mm
Breadth: 20 mm
Height: 25 mm
Allen key: 5 mm
Pressure (approx.): 6 kN, 3.0 kN
Weight: 0.100 kg
Body Material: Brass
Jaw Material: Hardened Steel
Colour: Black and Gold
Finish: Black oxide
Key Features:
Durable and reliable manual tool.
The brass body provides high resistance to corrosion.
