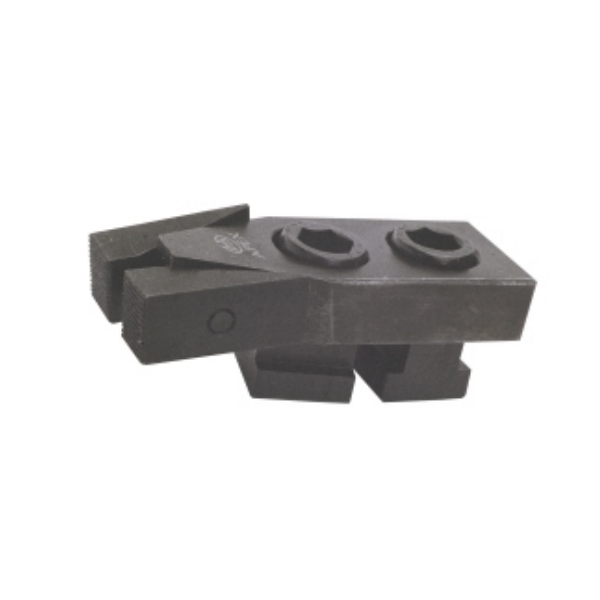

The Apex - 12 mm Taper Clamp is suitable for clamping due to its low height and side clamps, leaving the entire surface free for machining. The improved and innovative design of the clamping jaws of the 12 mm Taper Clamp applies wedge type action, thereby exerting equal side and downward pressure with maximum clamping force. The compound movement of the two jaws creates the drawing action. The Taper Clamp is far more advantageous than other flat clamp counterparts due to the full serration of the jaws to clamp thin material. Another notable feature is its ability to provide effective and rigid clamping of flat jobs, irrespective of the size of the job. The device comprises hardened steel for prolonged usage and strong resistance in harsh working conditions. Owing to its wide range of benefits, there are numerous applications for the product, such as milling, planing and where high clamping force is required.
Product Specifications:
Manufactured by: Apex
Type: Taper Clamp
Item Model: 903-12
T-Slot: 12 mm
Length: 110 mm
Breadth: 30 mm
Height: 15 mm
Allen Key: 8 mm
Approx. Pressure kN: 15 and 7.50
Weight App. Kg: 0.500
Finish: Black Oxidised
Key Features:
The advantage to leaving the entire surface free due to low height and side clamps
Wedge type action for tremendous clamping force
Perfect clamping operations for a wide range of sizes
Strong hardened steel body for good durability and toughness
