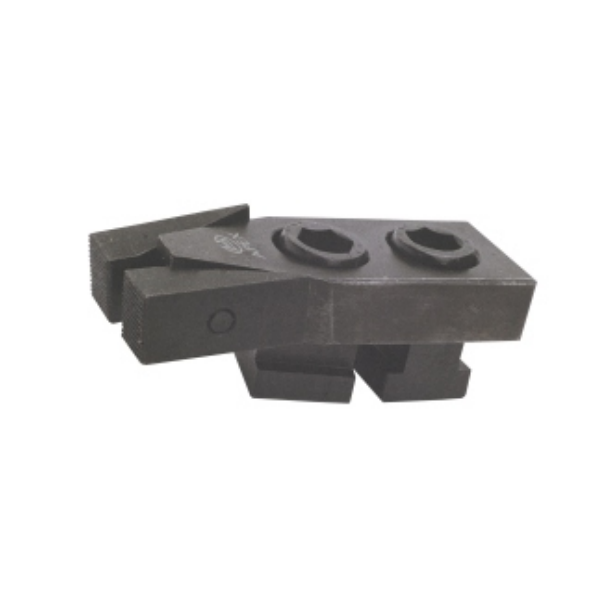

The Apex - 10 mm Taper Clamp is a low-height side clamp, leaving the entire surface free for machining. With an improved clamping jaw design, the 10 mm Taper Clamp applies wedge type action and exerts an equal side and downward pressure of 10 kN and 5 kN with maximum clamping force. The 10 mm Taper Clamp consists of two deep forged clamping jaws that can clamp thin material with full serration, and the compound movement of the two jaws creates a drawing action. The weight of the Taper Clamp is 0.280 kg, and dimensions are 75×25×12 mm, respectively. The Taper Clamp provides a fine, effective, and rigid clamping of flat workpieces, ignoring their size and suitable for multiple horizontal and vertical clampings. Furthermore, the compact design of the Taper Clamp enables a fine non-damageable clamping without any geometric interference. Therefore, the Apex - 10 mm Taper Clamp is ideal for commercial and industrial fields.
Product Specifications:
Brand: Apex
Country of origin: India
Type: Taper Clamp
Model No.: 903-10
T-slot: 10 mm
Length: 75 mm
Breadth: 25 mm
Height: 12 mm
Allen key: 6 mm
Pressure (approx.): 10 kN, 5 kN
Weight: 0.280 kg
Colour: Black
Finish: Black oxide
Key Features:
It has a compact and portable design.
Light in weight and reliable.
It provides strength and rigidity.
Useful in a corrosive environment.
Ergonomic and promotes fatigue-free work.
