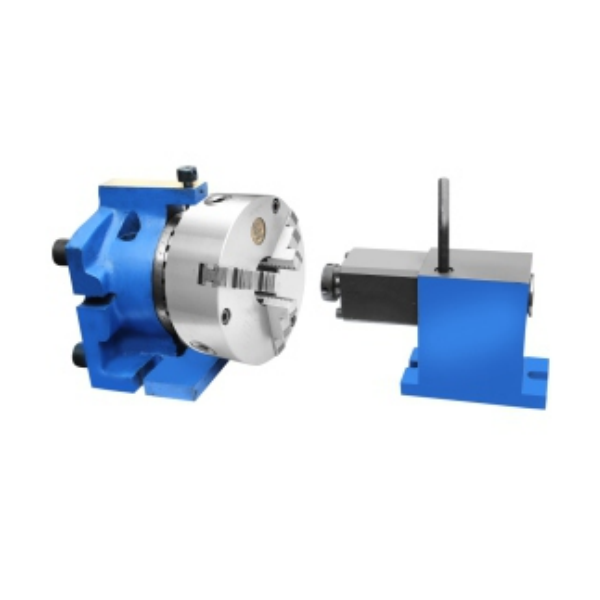

The Apex - 100 mm Horizontal and Vertical Indexing Milling Fixture with Chuck and Tail Stock has a rotary table designed for smaller milling machines. It has a table diameter of 100 mm and can be graduated 360 Degrees. It can be mounted both in horizontal and vertical position. It is made of high-grade close grain cast iron. Job clamping is fast, and indexing is quick, thereby increasing production efficiency. The 100 mm Horizontal and Vertical Indexing Milling Fixture with Chuck and Tail Stock has movable parts hardened and ground for long life. Indexing accuracy is precise, and products can be used on surface grinding also. The Horizontal and Vertical Indexing Milling Fixture with Chuck and TailStock has tailstock with lead screw movement for centre support of long shaft/jobs. With all these additional advantages, the Horizontal and Vertical Indexing Milling Fixture fixtures are priced much lower than the conventional dividing head or rotary table.
Product Specifications:
Brand: Apex
Made In: India
Product: Horizontal and Vertical Indexing Milling Fixture
Model: 783
Size: 100 mm
Key Features:
Sturdy
Strong
Rust free
