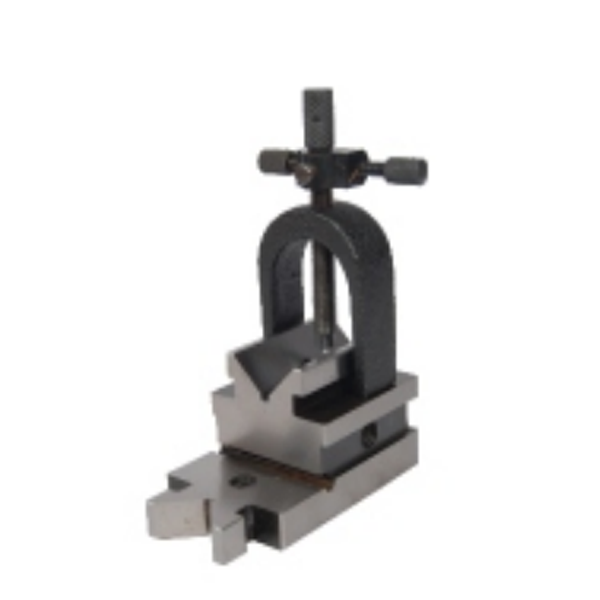

The Apex - 90 mm Ultimate Vee Blocks and Clamping Set is a highly dexterous device capable of being used on Base, on end flat on either side as the Clamp is within the outside width of the block. Another notable feature of the 90 mm Ultimate Vee Blocks and Clamping Set are its adjustable side screw with cap in the Clamp supports the block and prevents tilting during drilling, milling or grinding operations. Also, in the Ultimate Vee Blocks and Clamping Set, there are four 3/8 “-16 tapped holes, two in the Base and one on each side to allow attachment to an angle iron which can then be attached to a lathe faceplate or held by a magnetic chuck. The Grooves at the stepped end of the Vee Blocks and Clamping Set, right-angled to the Base, provides handy means for holding shouldered studs, round pins etc. Additionally manufactured from selected steel, the product is fully hardened and ground.
Product Specifications:
Manufactured by: Apex
Type: Ultimate Vee Block and Clamping Set
Code: 780
Block Length (mm): 90.00
Block Width (mm): 48.00
Block Height (mm): 48.00
Clamping Capacity (mm): 33.00
Key Features:
Convenient usage on base and end flat on either side
Adjustable side screws to stop tilting
Easy attachment to an angle iron
Comfortably holds shouldered studs, round pins etc.
Tough quality and highly durable product
