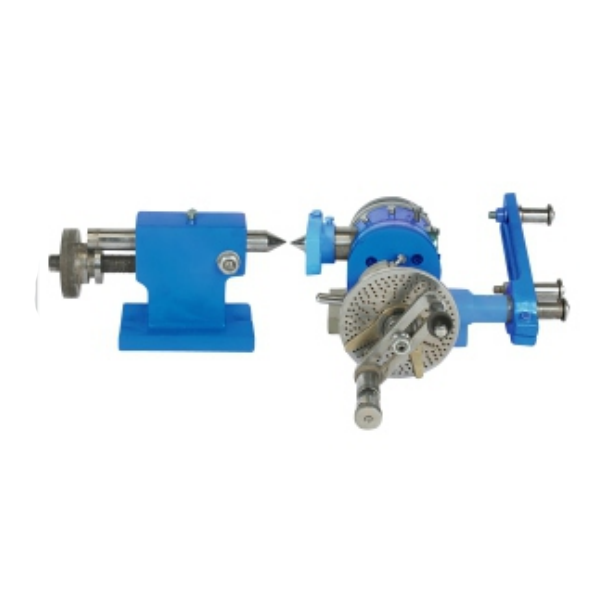

The Apex - 190mm Universal Dividing Head is manufactured using premium Cast Iron. The tool is created with precision so that it can ensure close accuracy. The swivel clamping pad of the Apex-190mm Universal Dividing Head is made from aluminium, and it reduces the risk of damage to the measuring device. The 190mm Universal Dividing Head is coated with powder. The 190mm Universal Dividing Head has a head that can be divided at any angle using the direct or indirect method. The Universal Dividing Head is an ideal machine that can perform all cutting operations. The Universal Dividing Head is commonly used for indexing purpose. The Dividing Head is also known as ‘indexing head’ or ‘spiral head’. The Dividing Head is used upon many machines such as drill machines, grinders, boring machine and milling machines.
Product Specifications:
Brand: Apex
Made in: India
Product: Dividing head
Model: 768
Material: Cast Iron
Finish: Blue Powder
Centre height: 190mm
Worm gear ratio: 1:40
Spindle bore size: 55 to 75mm
Spindle Taper degree: 9
Length of the base: 36mm
Width of the base: 9mm
Gear set DP: 232mm
Weight: 12 Kgs
Key Features:
Accurate indexing
No risk of damaging the measuring device
