Apex 767 - 100 mm Indexing Milling Fixture


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Apex 767 - 100 mm Indexing Milling Fixture

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

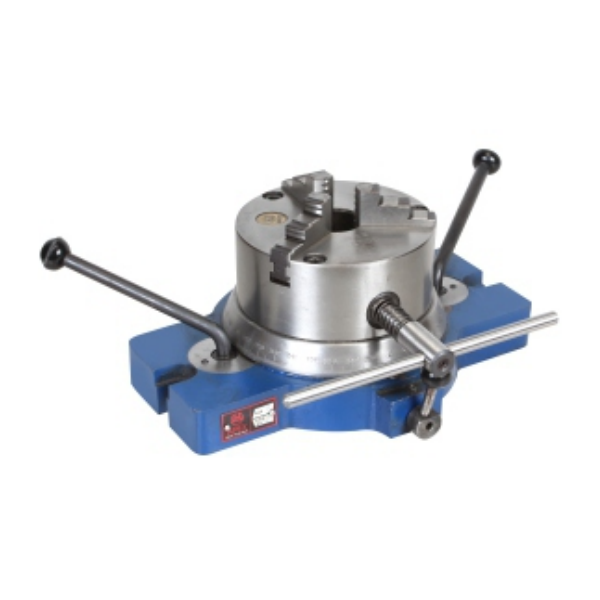

The Apex - 100 mm Indexing Milling Fixture has 3 jaws with a self-centring true chuck. 100 mm Indexing Milling Fixture also has reverse jaws that can hold any diameter up to chuck capacity. The Indexing Milling Fixture can be done by the 360 graduated collars. The Milling Fixture can also be used by an index plate. The mixing fixture is grey and about 100 mm in dimensions.

Product Specifications:

  • Company: Apex
  • Model No: 767
  • Chuck Size (mm): 100 mm
  • Chuck Hole: 22 mm
  • Overall Length: 320 mm
  • Overall Width: 230 mm
  • Graduation: 360 degrees
  • Distance between slots: 295 mm
  • Weight: 18 kgs
  • Colour: Grey

Key Features:

  • Has three jaws with self-centring true chucks.
  • Has reverse jaws.
  • Indexing is done by 360 graduated collars.
  • Indexing is also done by index plate and finger.
Product Specifications

GENERAL

Brand:
Apex
Manufacturer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Model:
767
Packer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Product:
Indexing Milling Fixture
Size:
100 mm
