Description

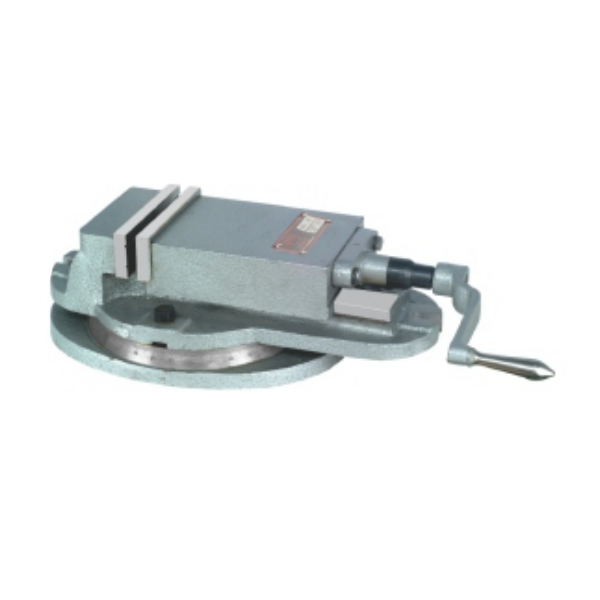

The Apex - 100 mm Preci Milling Swivel Model Machine Vice is a mechanical apparatus used to secure an object so that you can work on it efficiently without any hindrance. The 100 mm Preci Milling Swivel Model Machine Vice has two parallel jaws, fixed and moveable, threaded in and out by a screw and lever. The Preci Milling Swivel Model Machine Vice movable jaw does not lift off the hardened bed, while the stationary jaw has minimal deflection. Furthermore, the Swivel Model Machine Vice allows a rotation of 360 degrees. Thus, the user can set and lock the Machine Vice at any desired position.
Product Specifications:
Brand: Apex
Made In: India
Product: Preci Milling Swivel Model Machine Vice
Model: 748
Size: 4 inches
Width of Jaws: 100 mm
Depth of Jaws: 40 mm
Opening of Jaws: 100 mm
Length Overall: 317 mm
Overall Height: 85 mm
Overall Width: 155 mm
Tenon Slot Size: 16 mm
Weight (approx.): 18 kgs
Material: Cast Iron
Key Features:
Swivel base allows 360-degree rotation and locking at any point
Strong cast iron body is shock-resistant

Product Specifications

GENERAL

Brand:
Apex
Manufacturer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Model:
748
Packer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Product:
Preci Milling Swivel Model Machine Vice
Size:
100 mm
