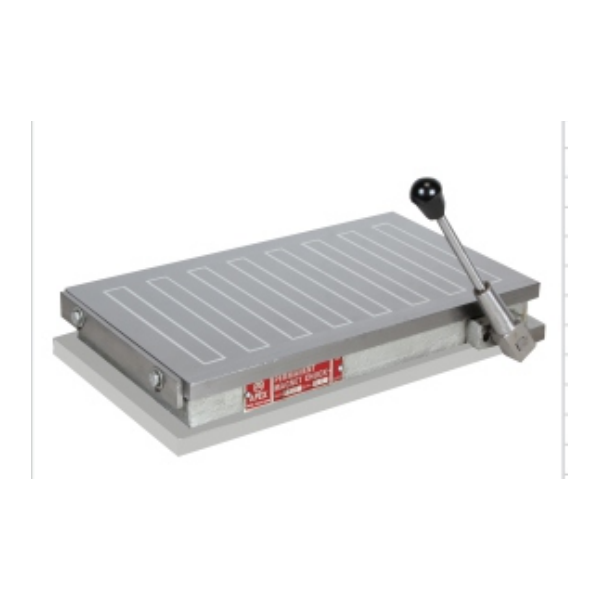

Apex brings you the Apex - 150x350 mm Rectangular Fine Pole Permanent Magnetic Chuck for high clamping applications. This Rectangular Fine Pole Permanent Magnetic Chuck’s model number is 742F, and it has a size of 150x350mm. The Apex - 150x350 mm Rectangular Fine Pole Permanent Magnetic Chuck has a flat rectangular base. The Rectangular Fine Pole Permanent Magnetic Chuck is designed to be permanently magnetised. Therefore, the Magnetic Chuck does not require calibration after each use.
Product Specification:
Product: Rectangular Fine Pole Permanent Magnetic Chuck
Brand: Apex
Model: 742F
Width of Table: 150 mm
Length of Table: 350 mm
Number of Poles: 11
Working area: 115x295 mm
Weight: 22 kgs
Pole: Fine Pole
Made in: India
Key Features:
For high clamping applications
Designed for application on surface grinding machine
It can be used in various engineering working sites
