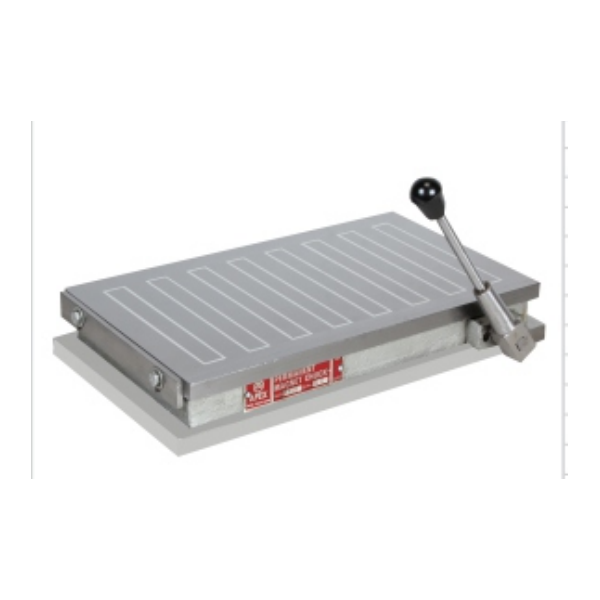

The Apex - 150x250 mm Rectangular Fine Pole Permanent Magnetic Chuck is a reliable product with prolonged working life and accuracy. The 150x250 mm Rectangular Fine Pole Permanent Magnetic Chuck is a fine (close) pole pitch suitable for high clamping. This Rectangular Fine Pole Permanent Magnetic Chuck is designed for a surface grinding machine. Moreover, the Fine Pole Permanent Magnetic Chuck, Magnetic Chuck also serves as a working aid on various Engineering working sites. It allows for a superior holding on thinner pieces with sinker EDM operations to the magnet surface with absolutely zero negative effects on operations.
Product Specifications:
Brand: Apex
Made In: India
Product: Rectangular Fine Pole Permanent Magnetic Chuck
Model: 742F
Size in inches: 6x10 inches
Width of Table: 150mm
Length of Table: 250 mm
No. of poles: 7
Working Area of Table: 115x175
Weight (approx.): 15 kgs
Material: Metal
Key Features:
The fine (close) pole pitch is ideal for high clamping.
Easy to use
