Description

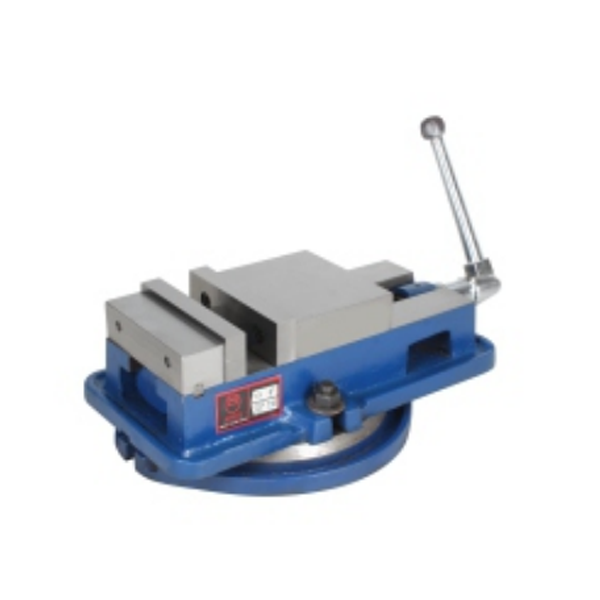

The Apex - 100 mm Swivel Model SG Iron Body Tilt Lock Machine Vice has a beamlike design with two vertical and horizontal rails connected to the Machine Vice base. The 100 mm Swivel Model SG Iron Body Tilt Lock Machine Vice allows the user to hold the parts in the most motionless state possible. The Swivel Model SG Iron Body Tilt Lock Machine Vice is an unbreakable ductile cast iron sturdy body. The swivel model adds flexibility to the Machine Vice as the user can place it in various positions. The die-steel hardened and ground jaws make SG Iron Body Tilt Lock Machine Vice an ideal for all industries. The Tilt Lock Machine Vice has minimum bending stress in the clamping area. Furthermore, the movable jaw does not lift off the hardened bed, while the stationary jaw has minimal deflection.
Product Specifications:
Brand: Apex
Made In: India
Product: Swivel Model SG Iron Body Tilt Lock Machine Vice
Model: 735
Size: 4 inches
Width of jaws: 100 mm
Depth of jaws: 37 mm
Between Jaws position 1: 110 mm
Between Jaws position 2: 160 mm
Between Jaws position 3: 230 mm
Between Jaws position 4: 280 mm
Length Overall: 360 mm
Height Overall: 140 mm
Width Overall: 230 mm
Tenon Slot Size: 16 mm.
Material: SG Iron
Weight (approx.): 21kgs
Key Features:
It has a flame hardened bed.
Completely enclosed toughened screw.
The various parts are available as spares and are interchangeable.

Product Specifications

GENERAL

Brand:
Apex
Manufacturer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Model:
735
Packer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Product:
Swivel Model S G Iron Body Tilt Lock Machine Vice
Size:
100 mm
