Buy Apex 715E - 450 mm Universal Rotary Milling Table Online

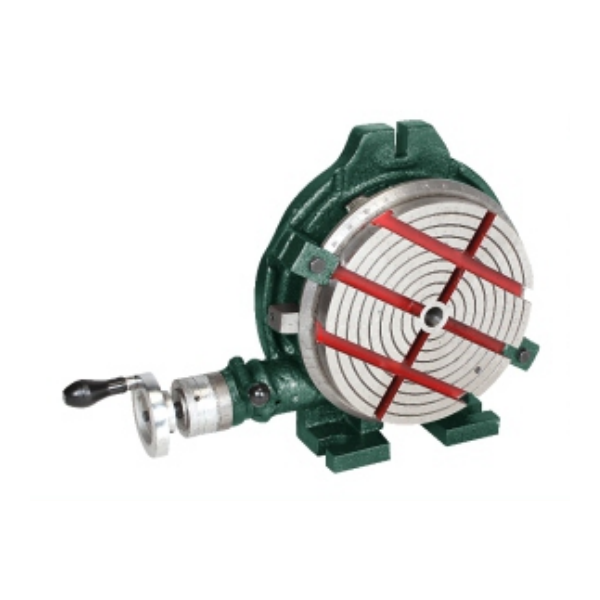

Apex 715E - 450 mm Universal Rotary Milling Table


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Apex 715E - 450 mm Universal Rotary Milling Table

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

The Apex - 450 mm Universal Rotary Milling Table is an enhanced model used in setting angles, circular cutting, and indexing milling machines. The 450 mm Universal Rotary Milling Table can resist stress as the Universal Rotary Milling Table is made from close grain shock-resistant Iron. This RotaryMilling Table is provided with two-bolt slots on the base with a Working rotatory surface. The greatest error that can occur is 4 minutes of circular division while using handwheels. The end plays in the worm shaft are adjustable. There are both Vertical mounting and horizontal slots on the machine table.

Product Specifications:

  • Company: Apex
  • Model No: 715E
  • Table Diameter: 450 mm
  • Maximum Error: 4 minutes
  • Maximum parallelism error: .025 mm
  • T-Slot Size: 20 mm
  • Center Bush Bore: MT 4
  • Worm and Gear Ration: 1:120
  • Wheel Calibration: 1 minute
  • Weight: 175 kgs
  • Colour: Hammer Tone Mid Grey

Key Features:

  • Rotatory Working surface
  • Vertical mounting and horizontal slots
Product Specifications

GENERAL

Brand:
Apex
Manufacturer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Model:
715E
Packer Details:
Randhawa Masandan Road, Gadaipur, Jalandhar - 144004 Punjab (INDIA)
Product:
Universal Rotary Milling Table
Size:
450 mm
