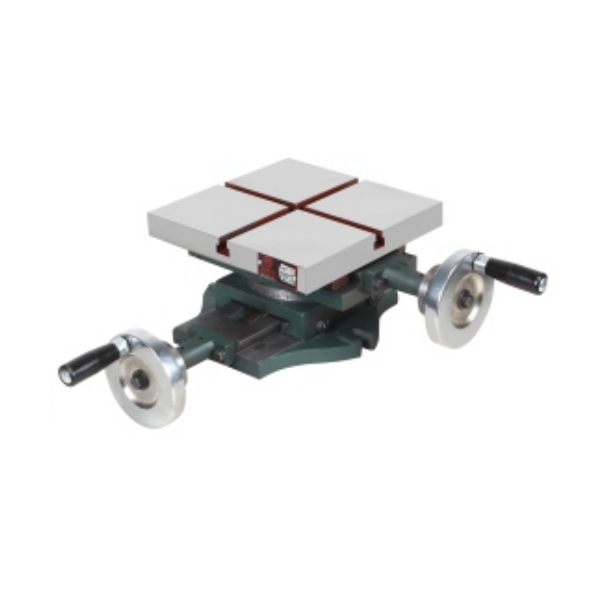

The compound sliding table is built with precision to ensure accuracy while working with the workpiece for boring, drilling, grinding, and milling operations. Apex - 150x150 mm compound sliding table with calibrated wheels and swivel graduated base is designed uniquely to permit maximum jaws. The T-Slots presented in the tool are generally machined from solid steel. The 150x150 mm compound sliding table with calibrated wheels and swivel graduated base comes equipped with two-axis positioning. The base of the tool has bolts for machine mounting. The surface table of the compound sliding table with calibrated wheels and swivel graduated base can swivel around 360-degrees. The Apex - 150x150 mm compound sliding table with calibrated wheels and swivel graduated base is designed with one longitudinal T-slot and one cross T-slot on the work surface.
Product Specification:
Brand: Apex
Product: Compound Sliding Table with Calibrated Wheels and Swivel Graduated Base
Model: 708
Size: 150x150 mm
Height: 102 mm
Length: 300 mm
T-slot size: 10 mm
Swivel: 360 degrees
Jaw Depth: 45 mm
Jaw Width: 85 mm
Weight: 18 kgs
Key Features:
Durable
Accuracy
Easy to use
Dovetailed Slides
Operates smoothly
