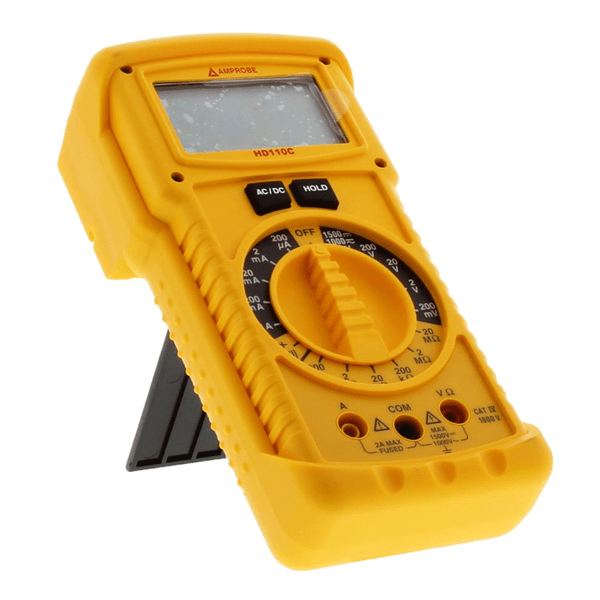

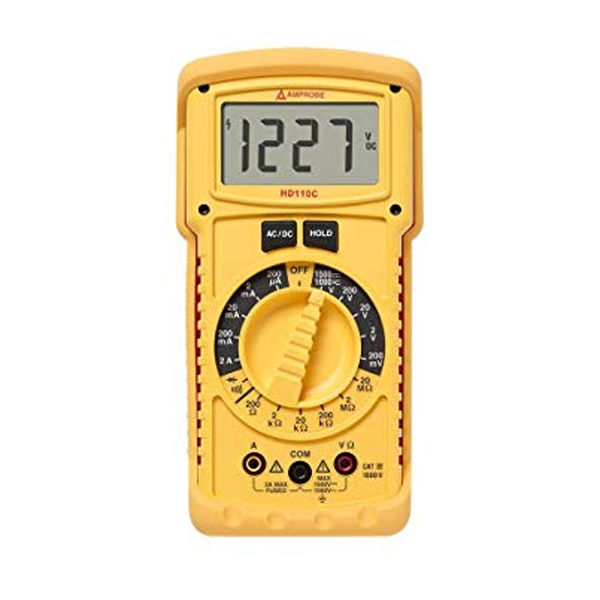

Amprobe HD110C - IP67 Heavy Duty Multimeter


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081
Amprobe

Amprobe HD110C - IP67 Heavy Duty Multimeter

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Highest Voltage Capability, Measuring to 1500 V DC and 1000 V AC.
  • CAT IV 1000 V Rated.
  • Special Sealing for Environment and Water Resistance.
  • IP67 Rated.
  • Constructed with Drop Resistant Housing and PCB Mounting.
  • Magne Grip holster, Frees both hands for work.

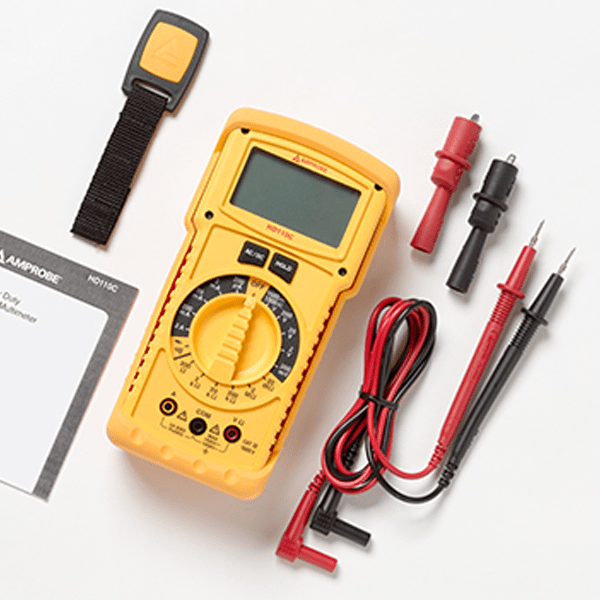

  • Includes high voltage Test Leads with Threaded Alligator Clips.
  • Display 3 1/2 Digit LCD, 1999 Counts, with Annunciators.
  • Automatic Polarity Indication.
  • Low Battery Indication.
  • Standard 9 V battery, NEDA 1604, JIS 006P,IEC 6F2.
  • Flame Retardant, High Impact Thermoplastic case.
  • Resistance ranges 200 Ohms, 2 k Ohms, 20 k Ohms, 200 k Ohms, 2 M Ohms, 20 M Ohms.
Product Specifications

GENERAL

AC Voltage Accuracy:
200 mV to 200 V
AC Voltage Input Impedance:
10 MO
AC Voltage OL Protection:
1500 V DC/1000 V AC RMS
AC Voltage Range:
200 mV, 2 V, 20 V, 200 V, 1000 V
AC Voltage Resolution:
0.1 mV
Brand:
Amprobe
DC Current Accuracy:
200 micro A to 20 mA
DC Current Range:
200 micro A, 2 mA, 20 mA, 200 mA, 2 A
DC Current Resolution:
0.1 micro A
DC Voltage Accuracy:
All Ranges A+/- 0.1 Percentage rdg, 2 Digits
DC Voltage Input Impedance:
10 MO
DC Voltage OL Protection:
Greater Than 1500 V DC/1000 V AC RMS
DC Voltage Range:
200 mV, 2 V, 20 V, 200 V, 1500 V
DC Voltage Resolution:
0.1 mV
Model:
HD110C
