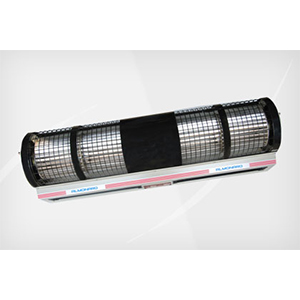

Almonard AHV 5 - 3.4A Single Phase AHV Silent Industrial Air Curtain


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Almonard AHV 5 - 3.4A Single Phase AHV Silent Industrial Air Curtain

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description

Air Curtain is an environment, separation equipment which prevents outside air, insects and hot air entry to the conditioned area through the open door ways or the door being opened at frequent intervals. The principal of Air Curtain is that it blows the atmosphere air to constant velocity at the doorways and forms a Air stream for the entire width and height of the door openings. The velocity will vary depending on the effective throw of the air stream.

Features:

  • The casing (shell) of Air curtain is of robust construction.
  • The impeller is of aluminium construction with forward curved blades to minimise the air cutting noise.
  • Easy mounting arrangement with a flat frame which can be fixed on the wall by suitable coach screws.
  • Adjustable louvers to streamline air delivery.
  • Almonard Air curtains are coupled with sturdy motors for the continuous duty application.
  • Vibration free operation.
  • Pre lubricated both side sealed Bush, Bearing/ Double ball bearing to take any load and also for smooth running of Air Curtain.
  • Elegant look and with superior quality powder coated finish.
Product Specifications

GENERAL

Brand:
Almonard
Country of Origin:
India
Dimensions:
265x 255x 1525 mm
Effective Air Throw:
2 Meters
Manufacturer Details:
Almonard pvt.ltd Mumbai - 400 018(Maharashtra), 305, Kakad Chambers, 3rd floor, 132. Dr. Annie Besant Road, Worli, Mumbai - 400 018(Maharashtra)
Model:
AHV-5
Motor Speed:
250 Watts, 960 RPM
Packer Details:
Almonard pvt.ltd Mumbai - 400 018(Maharashtra), 305, Kakad Chambers, 3rd floor, 132. Dr. Annie Besant Road, Worli, Mumbai - 400 018(Maharashtra)
Phase:
Single
Product:
AHV Silent Industrial Air Curtain
Rated Current:
3.4 Amps
Sound Level:
62 dB
Velocity:
8/9 M/sec
Weight:
24 Kg
