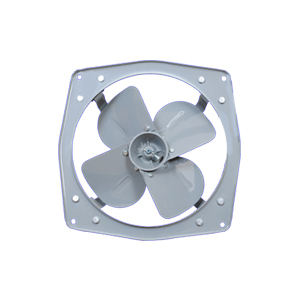

Almonard 15 inch, 0.45A Three Phase Heavy Duty Industrial Exhaust Fan is used to remove smoke, steam, and other air pollutants from an industrial area. Almonard exhaust fans have a start capacitor and run type motor which is built to withstand rigorous usage, encompassed in a case, and has been assessed continually. These fans are equipped with a pre-lubricated double ball-bearing motor which works silently and smoothly and lasts longer. These electrical appliances are provided with class ‘A’ and ‘E’ insulation. These exhaust fans employ a propeller-type impeller. Vibration in these fans is eliminated by supporting the hub and impeller on the frames and arms dynamically which are mounted on a rubber bushing.
Product Attributes:
Fan Diameter: 380 mm, 15 inch
Max Free Air Delivery: 3250 M3/HR, 1910 CFM
Rated Current: 0.45 Amperes
Sound Level: 60-65 dB
Speed: 1400 RPM
Phase: Three
Benefits:
Totally enclosed and rugged built
Long life
Smooth and silent operation
No vibration
Low operating cost
