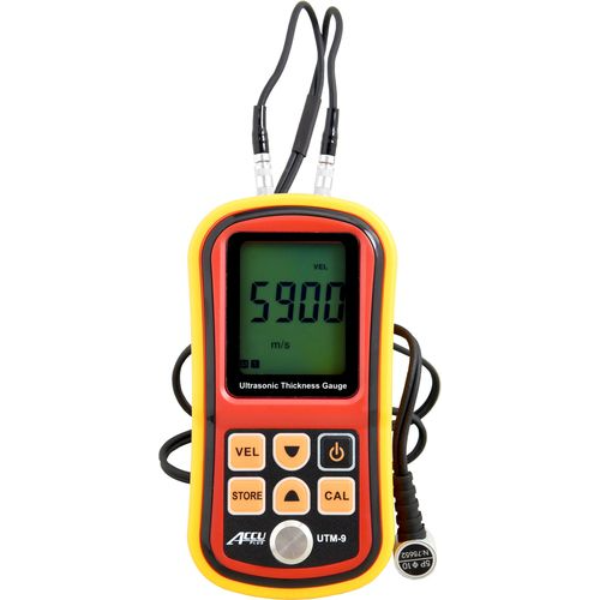

Accuplus UTM 9 - Ultrasonic Thickness Gauge


Available on Request
Quantity
Minimum Order Quantity: 1 unit(s) Packing Qty: 1 Piece
OR
Reach Us At +91-9243011081

Accuplus UTM 9 - Ultrasonic Thickness Gauge

Price

Available on Request
Delivery * Free delivery above Rs. 1000
* COD payment upto Rs. 5000
* 7 days easy replacement policy
* Bulk orders are shipped through surface and therefore might take more than 10 days for delivery

Check

Please enter pincode.
Services

Dispatch in 2-3 Business Days

Standard SD Replacement Policy

100% Authentic and Genuine Products. Secure and Safe Payments.

NA

NA

Description
  • Application -This Unit Is Suitable For Measuring Materials That Are Good ultrasonic Conductor Such As Metal, Plastic, Ceramic, Glass etc., As Long As The Measured part in Two parallel Surfaces For Measurement Of Thickness. This Unit Is Not Suitable For Cast Iron Due to Its Big Crystalloid Composition.
  • Normal Operation Current 50mA.
  • With Backlight Turn On Current 120mA.
  • Transducer (10mm , 5MHz)
  • Coupling Agent (50ml)
  • 4mm Sample Block
  • Optional Accessories (10mm , 2.5MHz)
Product Specifications

GENERAL

Accuracy:
+/-(1 Percent H + 0.1) mm H Denotes The Measured Thickness
Brand:
Accuplus
Country of Origin:
India/China
Display:
4-Digit LCD Display
Measuring Range:
1.2 To 225.0 mm (Steel)
Minimum Display Unit:
0.1 mm
Minimum Limit For Tube Measuring:
20x3 mm
Model:
UTM 9
Operation Temperature:
0 to 40 degree C
Power:
3x1 , 5 V AAA Alkaline Batteries
Size:
72x146x29 mm
Sound Velocity Range:
1000 To 9999 m/s
Stand-by Current:
20 micro A
Working Frequency:
5 MHz
